Globe valves and gate valves are essential components in industrial piping systems, each designed for specific flow control tasks. While they share similarities as multi-turn, linear-motion valves, their functions, structures, and applications differ significantly. At KFTE Valves, we provide high-quality globe and gate valves tailored for diverse industries. This guide explores the key differences between globe and gate valves, helping you choose the right valve for your application.

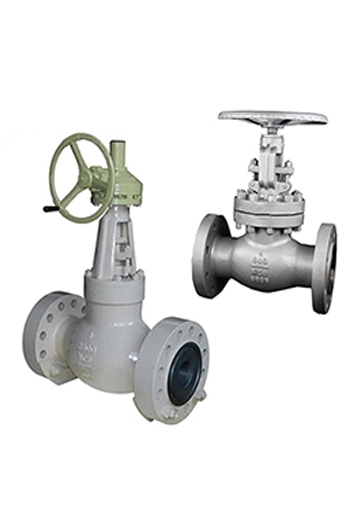

A globe valve is a control valve used to start, stop, or throttle fluid flow. It features a rounded body, a movable disc (or plug), and a stationary seat, with a complex flow path (e.g., Z-shaped or Y-shaped) that enables precise regulation. The disc moves perpendicular to the flow, creating a restrictive path that results in a higher pressure drop. Globe valves are ideal for applications requiring flow modulation, such as in HVAC or chemical processing. For instance, a Cast Globe Valve offers reliable performance in cooling systems.

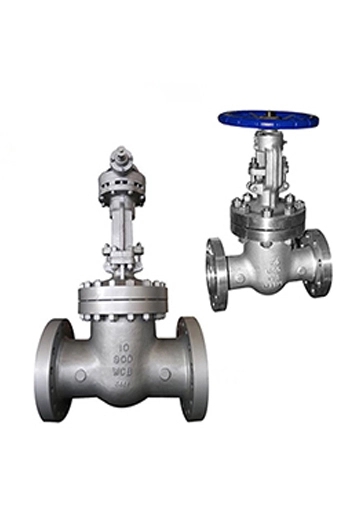

A gate valve is a shutoff valve designed for on/off isolation, featuring a wedge-shaped or flat gate that slides to block or allow flow. When fully open, it provides a straight-through path with minimal pressure drop, making it suitable for high-flow systems. Gate valves are not intended for throttling, as partial opening can cause vibration and wear. They are commonly used in water distribution or mining, with options like a Cast Gate Valve ensuring robust shutoff in pipelines.
Despite their shared linear-motion design, globe and gate valves differ in functionality, structure, and application. Here are the primary distinctions:
Globe valves are control valves, excelling at throttling and flow regulation, offering operators precise control over flow rates. Gate valves are shutoff valves, designed for complete on/off isolation without flow modulation, as throttling can damage the gate. For example, a Forged Globe Valve is used for chemical dosing, while a Forged Gate Valve isolates flow in oil pipelines.
Globe valves have a tortuous flow path, causing significant pressure drop due to flow diversion through the seat. Gate valves provide a full-bore, straight-through path when open, resulting in negligible pressure drop, ideal for systems prioritizing efficiency.
Globe valves are unidirectional, with an arrow on the body indicating the required flow direction due to their inlet and outlet ports. Gate valves are bidirectional, allowing flow in either direction, simplifying installation in multidirectional systems.
Globe valves have a complex internal structure, with components like the disc and seat housed within a rounded body, requiring more horizontal space. Gate valves have a simpler design, with a wedge or gate that moves vertically, often requiring more vertical space for rising-stem models but less horizontal space.
Globe valves offer superior sealing due to the disc’s direct pressure against the seat, minimizing leakage in applications requiring tight shutoff. Gate valves provide good sealing but may be less effective in high-precision scenarios due to their surface-only seal.
| Feature | Globe Valve | Gate Valve |
|---|---|---|
| Function | Throttling and flow control | On/off isolation |
| Pressure Drop | High | Minimal |
| Flow Direction | Unidirectional | Bidirectional |
| Flow Control | Excellent for throttling | Not suitable for throttling |
| Sealing | Superior | Good |
| Applications | HVAC, chemical processing | Water distribution, mining |
Globe Valves are suited for applications requiring precise flow control, including:
HVAC Systems: Modulating coolant flow to regulate temperature.
Chemical Processing: Controlling chemical injection in reaction vessels.
Power Generation: Managing steam flow in boilers for efficient operation.
Gate Valves are ideal for on/off isolation in high-flow systems, such as:
Water Distribution: Providing reliable shutoff in municipal pipelines.
Mining and Agriculture: Handling bulk materials like coal or grains.
Oil and Gas: Isolating flow in high-pressure pipelines.
Selecting the appropriate valve depends on your system’s specific needs. Consider these factors:
Flow Control Requirements: Choose a globe valve for throttling or precise regulation; select a gate valve for full on/off control.
Pressure Drop Sensitivity: Gate valves are preferable for systems where minimal pressure loss is critical, while globe valves suit applications tolerant of pressure drops.
Media Type: Gate valves handle viscous or contaminated media (e.g., slurries) better due to their unobstructed path; globe valves are less suitable for such fluids.
Installation Space: Globe valves require more horizontal space but less vertical space; gate valves (rising-stem) need more vertical space.
Operating Conditions: Globe valves are better for high-temperature applications, while gate valves excel in high-pressure environments.
For specialized applications, a Forged Globe Valve or Forged Gate Valve provides enhanced durability under extreme conditions.
Globe Valves:
Advantages: Precise flow control, superior sealing, suitable for high-temperature and corrosive environments.
Limitations: High pressure drop, unsuitable for slurries, higher cost, and heavier weight.
Gate Valves:
Advantages: Minimal pressure drop, bidirectional flow, cost-effective, suitable for viscous media.
Limitations: Not for throttling, less effective sealing, requires more vertical space for rising-stem designs.
Globe valves and gate valves are indispensable in industrial systems, with globe valves offering precise flow control and gate valves providing efficient on/off isolation. By understanding their differences—functionality, flow path, sealing, and applications—you can select the ideal valve for your needs. At KFTE Valves, we offer a wide range of high-quality globe valves and gate valves for industries like HVAC, oil and gas, and water distribution. Explore our catalogs or contact our team at KFTE Valves for expert guidance on your flow control solutions.
