Wafer swing check valve, it's a compact, in-line valve designed to prevent backflow in piping systems. The wafer design allows it to be easily sandwiched between flanges, while the swing check mechanism utilizes a hinged disc that opens with forward flow and closes to prevent backflow.
Wafer Design:Wafer Swing Check Valve is designed to be sandwiched between flanges, making it space-saving and easy to install.
Swing Check Mechanism:A hinged disc within the valve body opens with forward flow and closes due to gravity and backflow pressure, preventing reverse flow.
Compact and Lightweight: Wafer Swing Check Valves are generally smaller and lighter than other valve types, making them suitable for various applications.
Applications: Wafer Swing Check Valves are used in a wide range of industries, including water treatment, chemical processing, and HVAC systems.

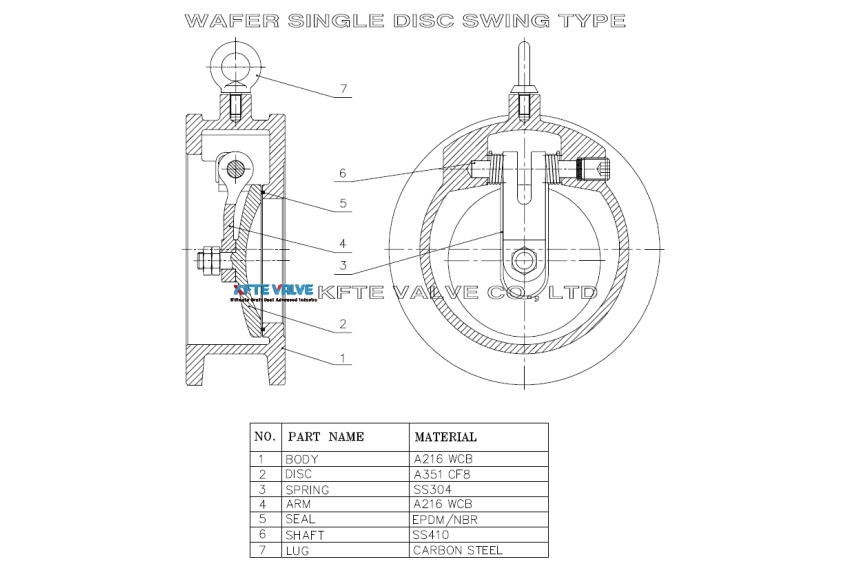

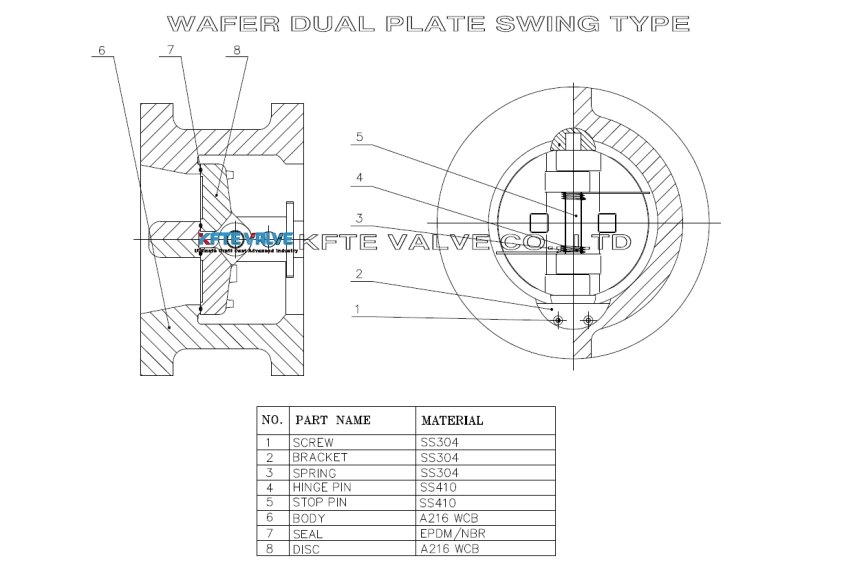

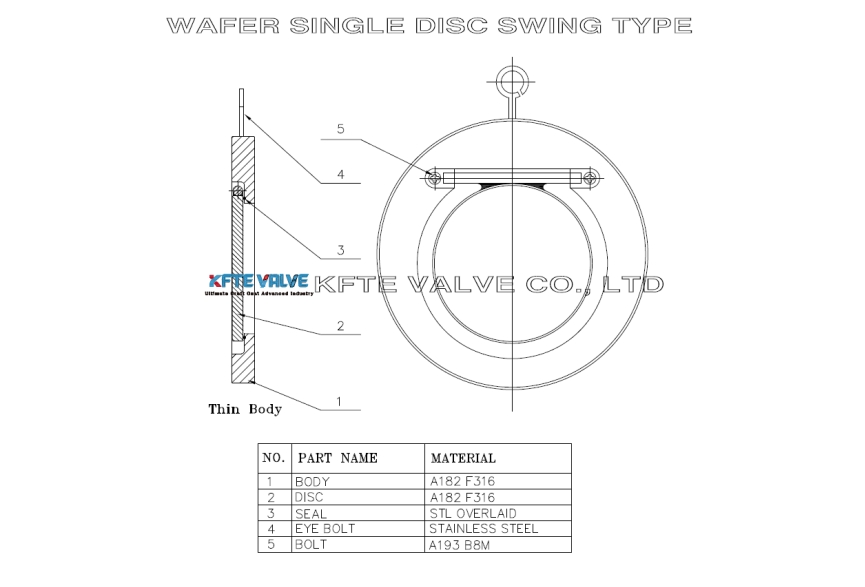

Please refer to the following drawings to clearly understand the three main types of Wafer Swing Check Valves from KFTE VALVE
