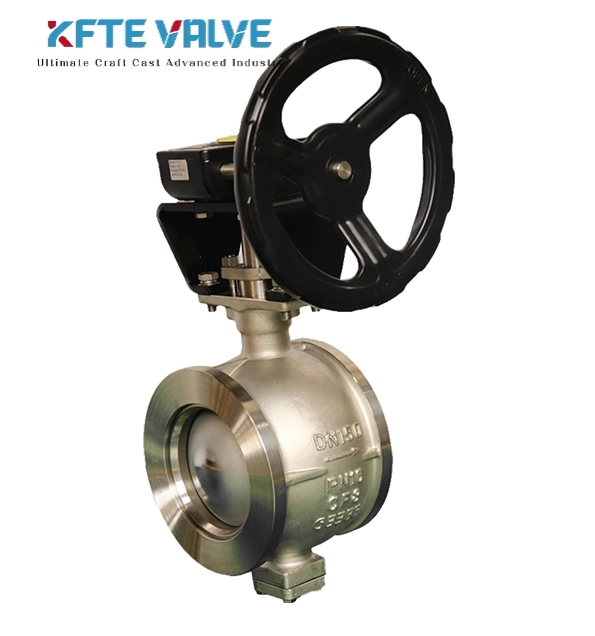

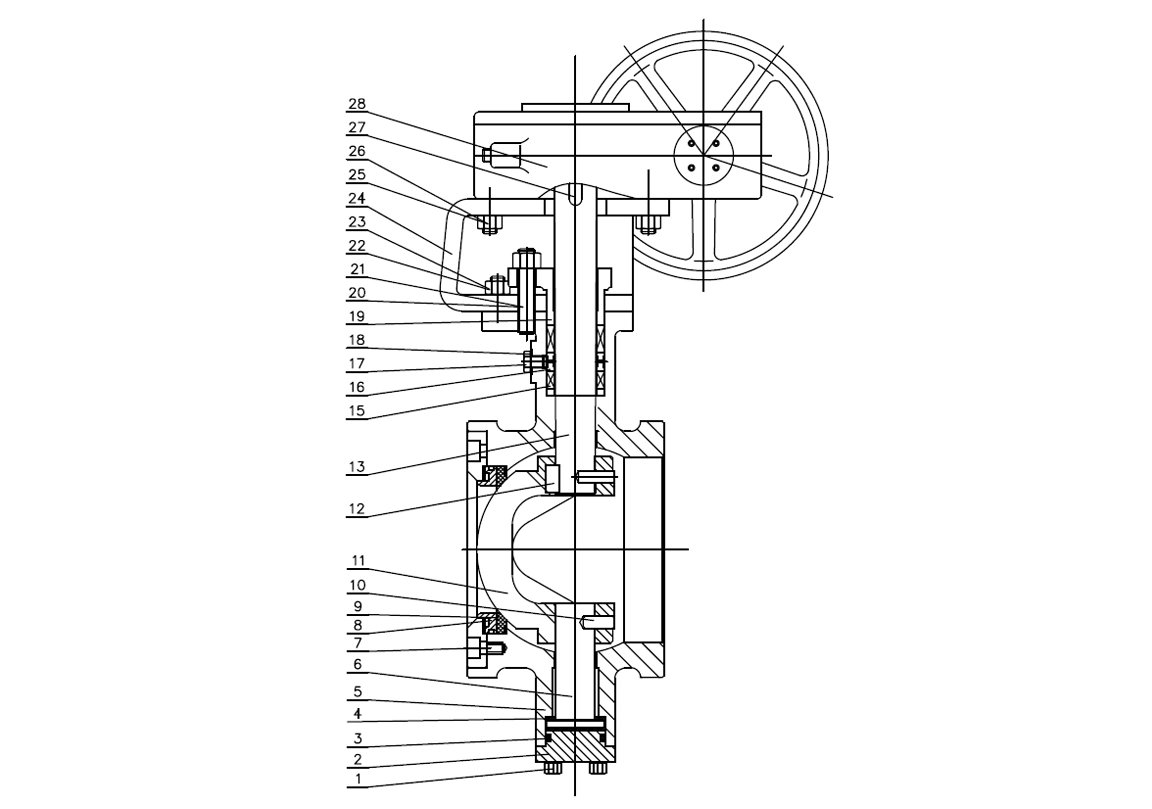

Wafer Segment Ball Valves

Applicable Standards

Valve Design: ASME B16.34

Size Range: NPS 1 to 16 | DN 25 to 400

Pressure Ratings: ASME Class 150, 300, 600 | PN 10, 16, 25, 40

Temperature Range: -50°F to 500°F | -46°C to 260°C

End Connections: Flanged/Wafer

V Port Type: Standard, 60°, 30° /Custom on request

Flange Drilling: ASME B16.5 / EN 1092-1

Top Flange: ISO 5211

Face-to-Face: Flanged-ISA 75.08.02 / ASME B16.10

Wafer- KFTE Internal Standard

Leakage Classification: Resilient Seat-Class VI per ANSI/FCI 70-2 | IEC 60534-4

Metal Seat: Class IV per ANSI/FCI 70-2 | IEC 60534-4

Live Loaded Packing

The spring loaded Teflon V-ring type packing provides maintenance free service

Premium Finishing

The stainless steel ball is NickelChromium plated and polished for the ultimate in corrosion resistance and extended seat life

Universal Actuation

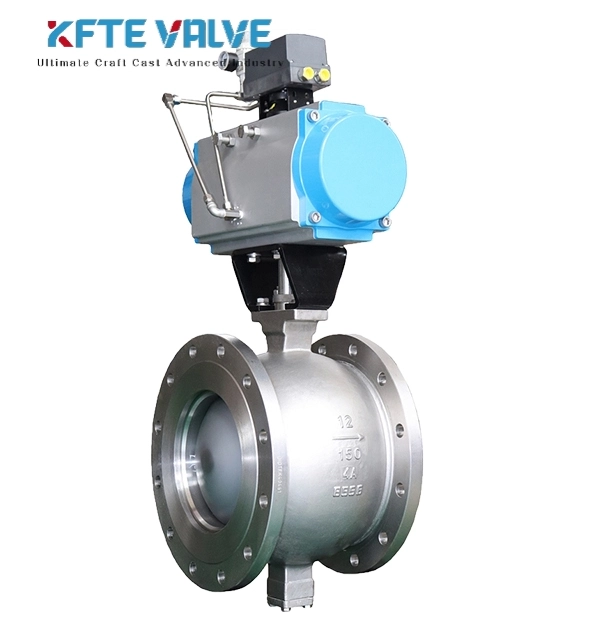

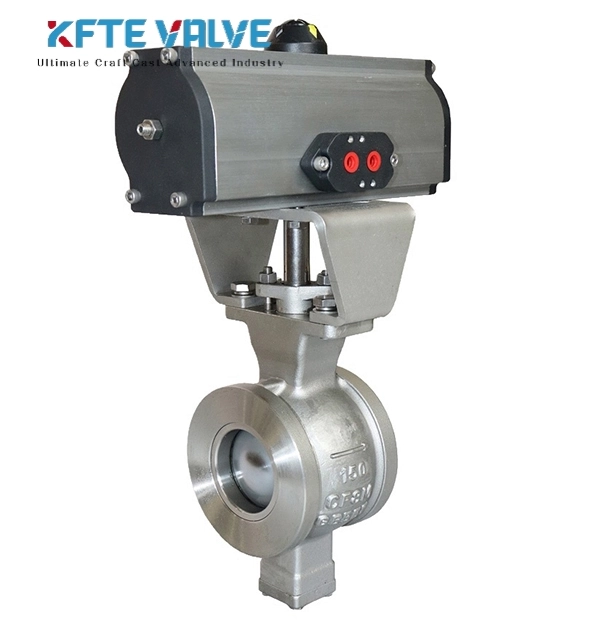

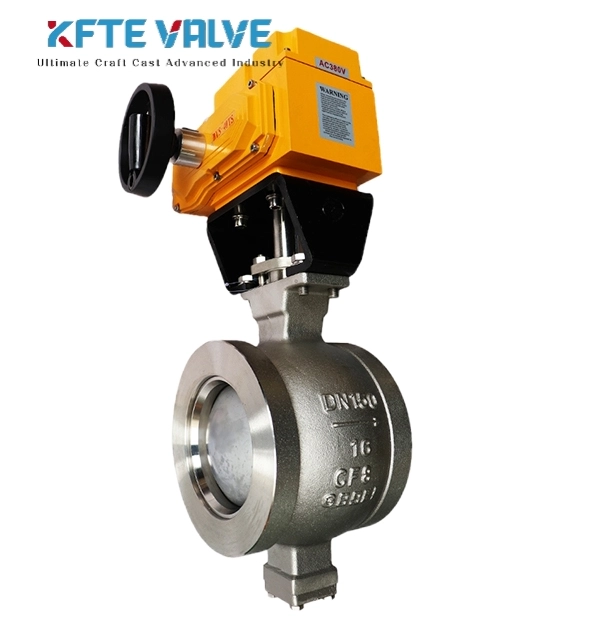

The ISO 5211 top mount allows VSI to offer a wide range of electric, pneumatic, hydraulic, failsafe, and other actuation packages

High Performance Body

Dual rated for installation between both ANSI Class 150 and Class 300 flanges. Includes NPT connection for threaded installations

Positive Positioning

Shaft and segmented ball are connected by a knurled pin pressed in place and welded to ensure minimal backlash

Easy Retrofit Installation

The face to face dimensions of the Series V conform to ASME B16.10 or ISA S75.08.02 to accommodate easy retrofit replacement of older globe and other outdated control valves.
