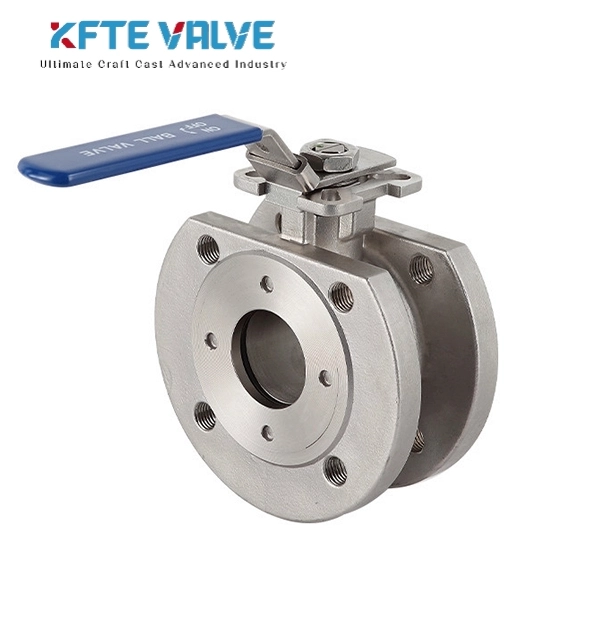

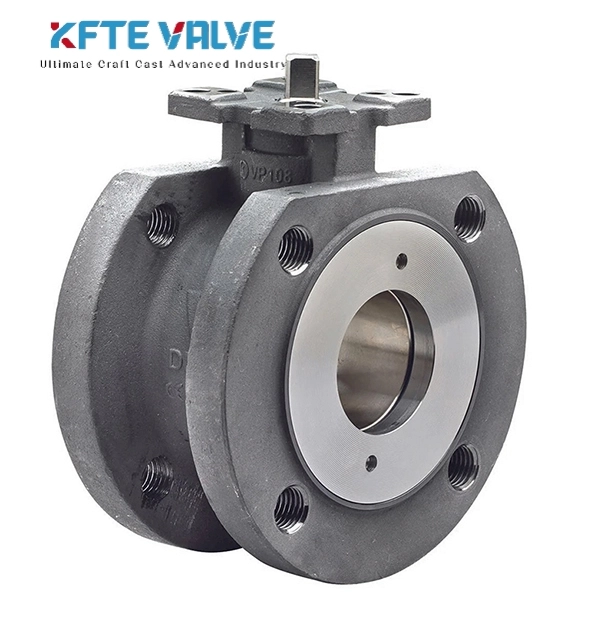

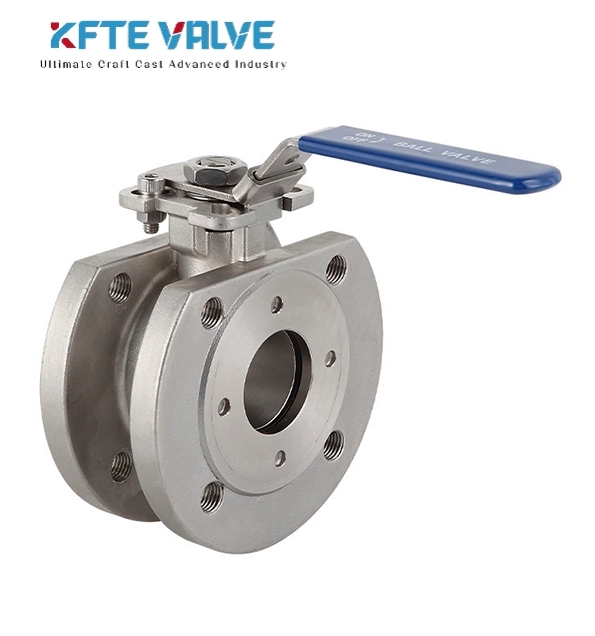

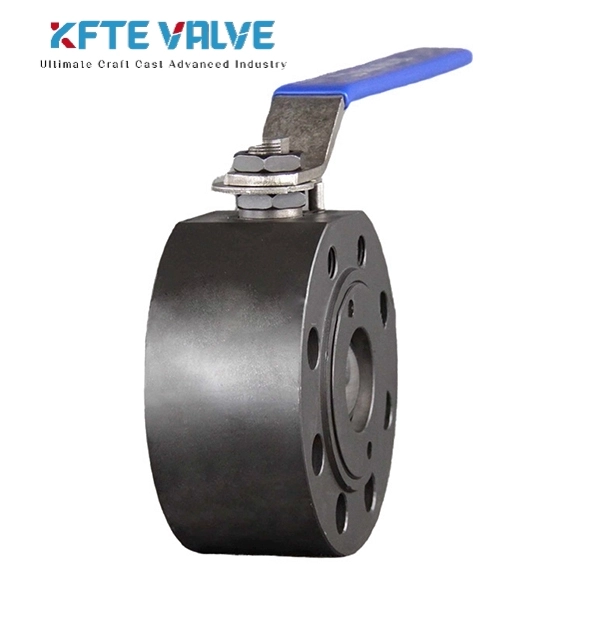

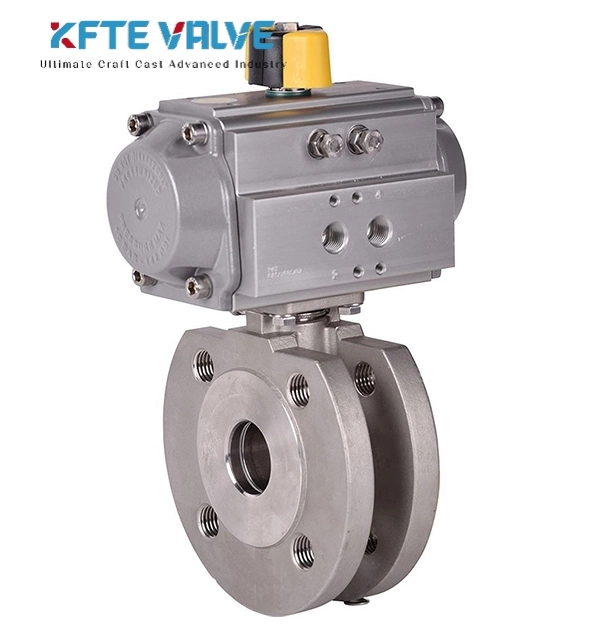

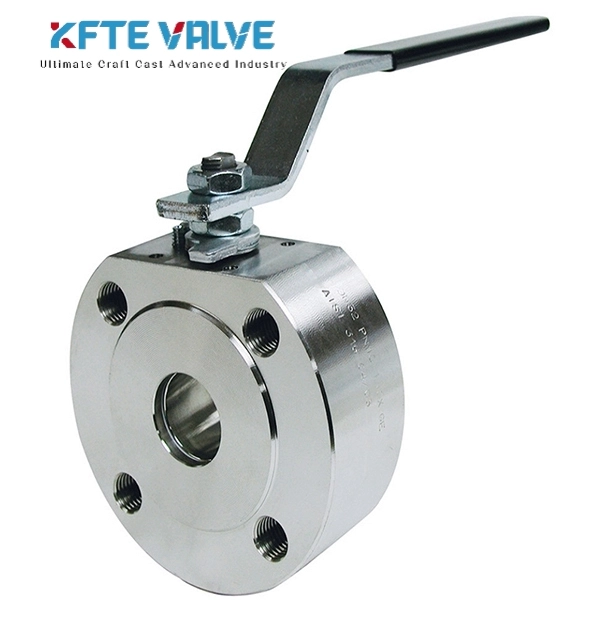

Wafer ball valve is characterized by its compact design, which allows it to be installed between two flanges in a piping system. It operates using a spherical ball with a central bore, enabling precise ball valve action for allowing or blocking flow with a 90-degree rotation. Many wafer ball valves offer a full bore design, meaning the hole in the ball is the same diameter as the pipeline, minimizing pressure drop. Thanks to their efficiency, versatility, and cost-effectiveness, wafer ball valve solutions are commonly used across various industrial sectors, particularly where space-saving industrial valve configurations are required. For corrosive or sanitary applications, wafer style ball valves provide enhanced durability and reliability. With increasing demand in industrial automation and fluid control, high-quality products from professional wafer ball valve manufacturers continue to gain popularity.
Applicable Standards
Size range: API 6D, ISO 17292, BS 5351, API 608
Design: ASME B16.34, EN 12516-2, ISO 14313
Face to face dimension: EN 558 series 100
Max working pressure: 40 bar bidirectional
Flange drilling: PN6, PN10, PN16, PN25, PN 40, ANSI class 150, class 300
Operating temperature: -20 °C ÷ +200 °C (-4 °F ÷ +392 °F)
Leakage class Rate:“A”- No leakage - according to EN 12266-1
Top flange: ISO 5211
Features:
1. Solid full-bore wafer ball valve with short face-to-face dimension, designed for mounting between flanges. This structure also complements compact valve categories such as mini stainless steel ball valve, used in limited-installation industrial environments.
2. The one-piece valve body obtained from precision casting (inox) or from cutout (carb. steel) has a little face to face (flat body) that allows the easy installation of the valve.
3. The stem is anti blow-out and it has an antistatic device.
4. Stem packing adjustable with Chevron rings in P.T.F.E. + carbographite, providing reliable sealing and maintenance flexibility for wafer style ball valve systems.
5. The seat consists of two rings in P.T.F.E. mounted inside the internal slots of the valve to guarantee the perfect tightening.

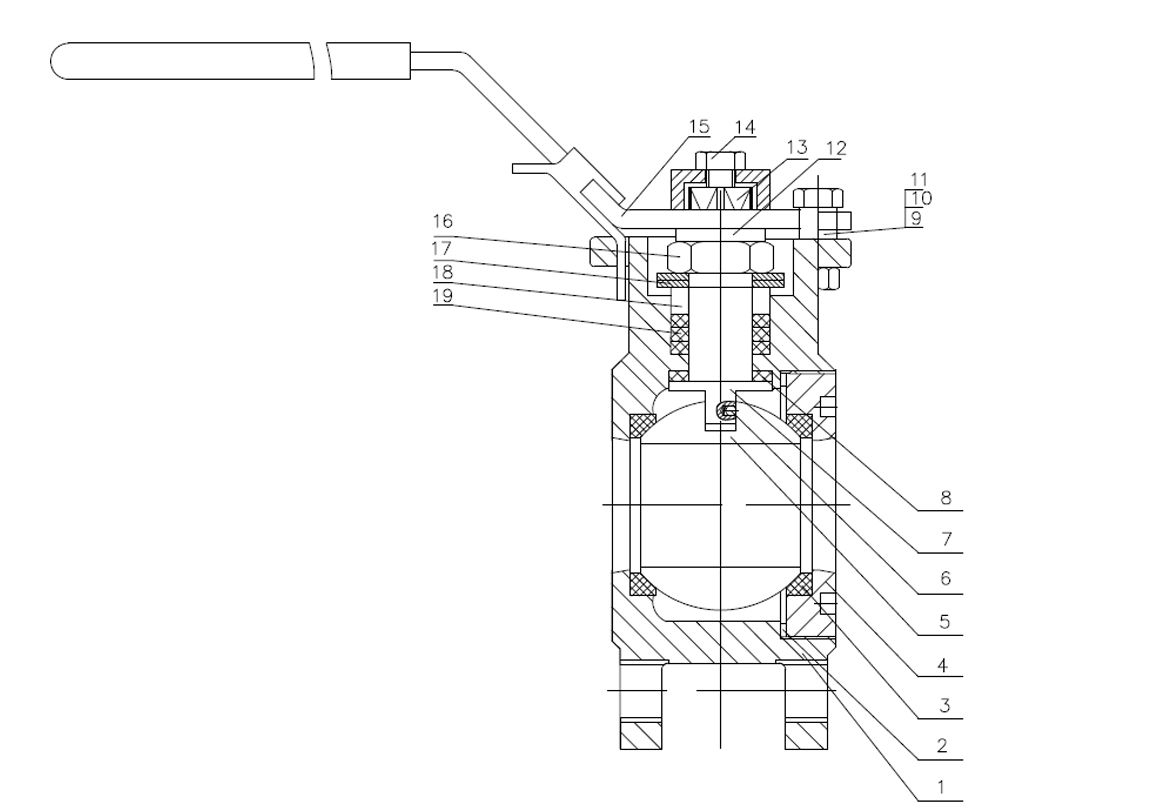

| Material Specification | |||
| NO. | DESCRIPTION | SS304 | SS316 |
| 1 | BODY | A351 CF8 | A351 CF8M |
| 2 | BODY GASKET | PTFE | PTFE |
| 3 | SEAT GASKET | PTFE | PTFE |
| 4 | CAP | A351 CF8 | A351 CF8M |
| 5 | BALL | A182 F304 | A182 F316 |
| 6 | ANTISTATIC DEVICE | SS316 | SS316 |
| 7 | STEM | A182 F304 | A182 F316 |
| 8 | STEM GASKET | PTFE | PTFE |
| 9 | NUT | A194 8M | A194 8M |
| 10 | BOLT | A193 8M | A193 8M |
| 11 | LOCKING PLATE | STAINLESS STEEL | STAINLESS STEEL |
| 12 | GASKET | PTFE | PTFE |
| 13 | STEM | A182 F304 | A182 F316 |
| 14 | BOLT | A193 B8M | A193 B8M |
| 15 | HANDLE | STAINLESS STEEL+PVC | STAINLESS STEEL+PVC |
| 16 | NUT | A194 8M | A194 8M |
| 17 | BELLEVILLE WASHER | SS301 | SS301 |
| 18 | PACKING GALND | A182 F304 | A182 F316 |
| 19 | PACKING | PTFE | PTFE |
| Material Specification | ||||
| NO. | DESCRIPTION | CARBON STEEL | SS304 | SS316 |
| 1 | BODY | A105 | A182 F304 | A182 F316 |
| 2 | BODY GASKET | PTFE | PTFE | PTFE |
| 3 | SEAT | PTFE | PTFE | PTFE |
| 4 | CAP | A105 | A182 F304 | A182 F316 |
| 5 | BALL | A182 F304 | A182 F304 | A182 F316 |
| 6 | ANTISTATIC DEVICE | SS316 | SS316 | SS316 |
| 7 | STEM | A182 F6A | A182 F304 | A182 F316 |
| 8 | STEM GASKET | PTFE | PTFE | PTFE |
| 10 | PACKING | PTFE | PTFE | PTFE |
| 11 | GLAND | A105 | A182 F304 | A182 F316 |
| 12 | BELLEVILLE WASHER | SS301 | SS301 | SS301 |
| 13 | STOP SCREW | A193 B7 | A193 B8M | A193 B8M |
| 14 | STOP PLATE | STAINLESS STEEL | STAINLESS STEEL | STAINLESS STEEL |
| 15 | GLAND NUT | A194 2H | A194 8M | A194 8M |
| 16 | HANDLE | STAINLESS STEEL+PVC | STAINLESS STEEL+PVC | STAINLESS STEEL+PVC |
