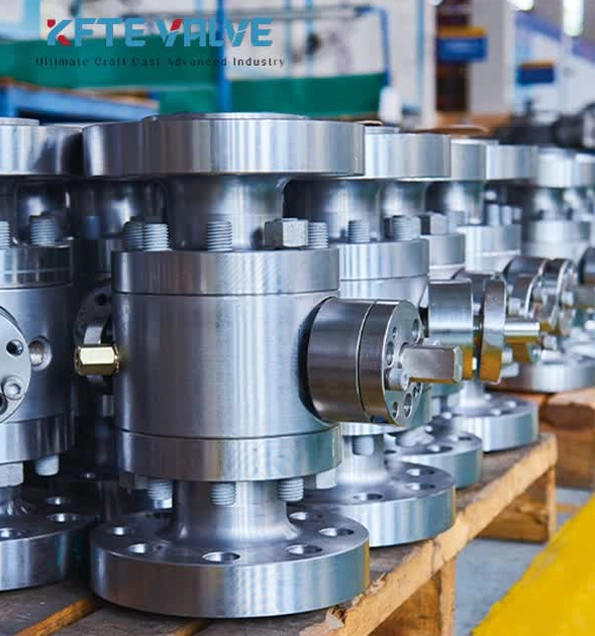

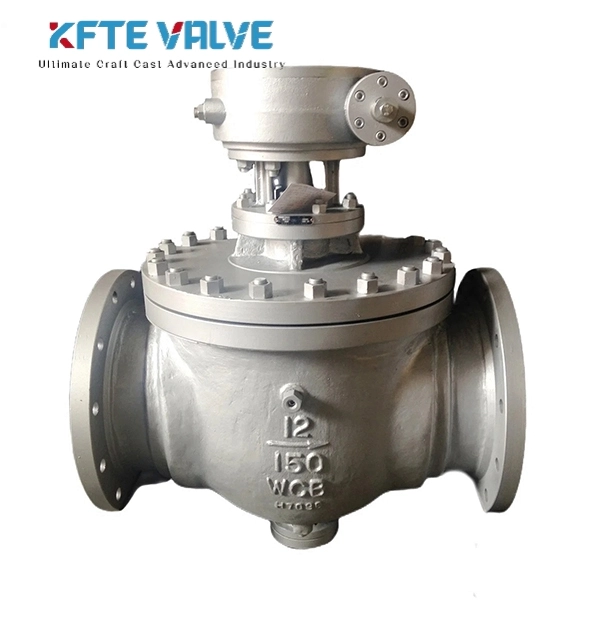

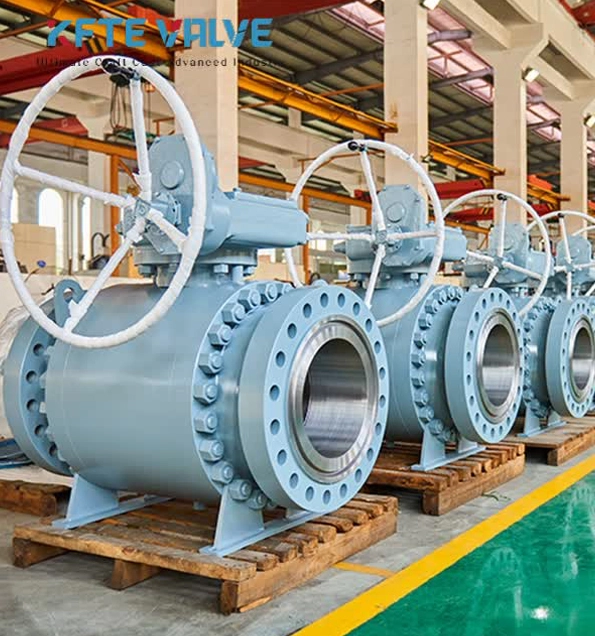

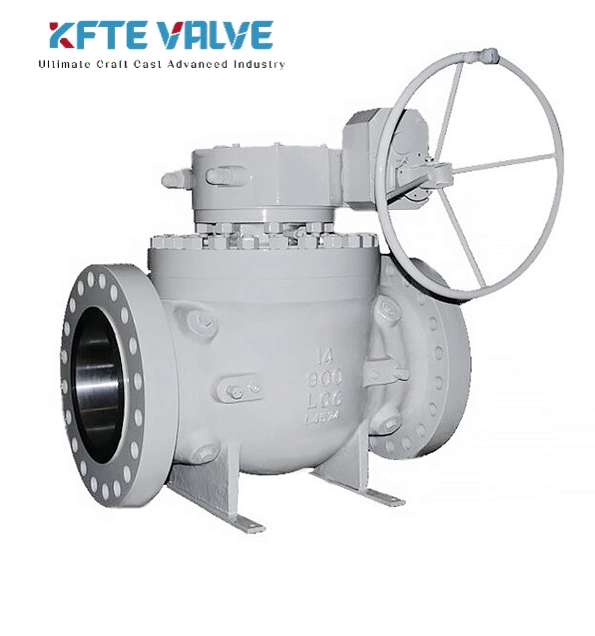

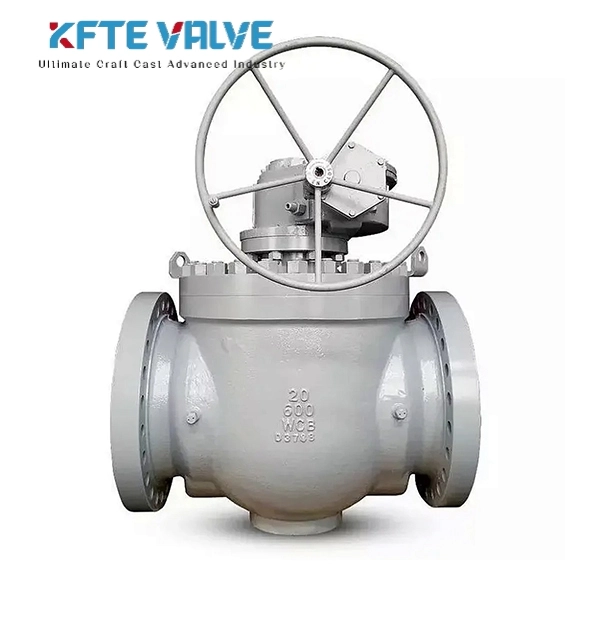

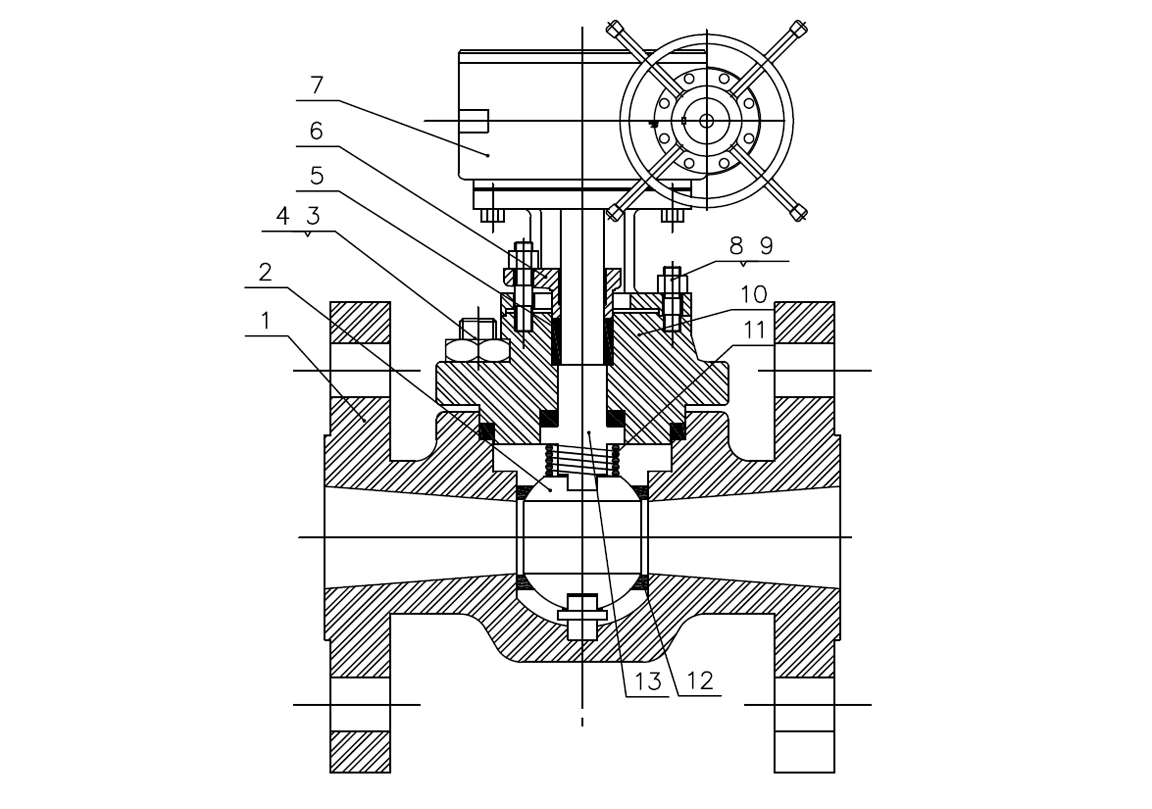

Trunnion Top Entry Ball Valve

Applicable Standards

Size Range: DN50 (2”) to DN600 (24”)

Pressure Rating: ANSI Class 150 to Class

2500Connection: Butt-weld ends to ASME B16.25; Flanged to ASME B16.5 (2” ~ 24”) and Clamp / Hub ends on request.

Body Materials: Carbon steel, ITCS, Stainless steel, Duplex, Super Duplex, Inconel 625 and other special alloys.

Top Mounting: ISO 5211 / EN15081Temp.

Range : -196°C to +200°C (-320°F to +392°F)

Design: API 6D / ASME B16.34 / ISO 14313

Face to Face: ASME B16.10* / API 6D

Fire Testing: API 607 6 Edition / ISO 10497

Pressure Testing: API 598 / API 6D / EN 12266-1/ISO 5208

Trunnion Ball

Trunnion ball valves have additional anchoring at the top and the bottom of the ball. Those two trunnions absorb the thrust generated by the line pressure, preventing excess friction between the ball and seats. Therefore, operating torques stay low even at full working pressures.

Anti-Blow-Out Stem Design

Stem design of KFTE top entry ball valves is of blow-out proof which prevents ejection of stem when the valves is under pressure. This design is in fully compliance with API 6D requirements.

Antistatic Device

All KFTE top entry ball valves are equipped with an antistatic device which creates a ground path and ensures an electrical conductivity through all metallic valve components.

Fire Safe

KFTE top entry ball valves are fire safe by standard design. Fire safe tests were carried out and certified according to API 6FA, API 607.

Mounting Flange

KFTE top entry ball valves are provided with ISO mounting flanges for actuators. Their design is in fully compliance with ISO 5211.
