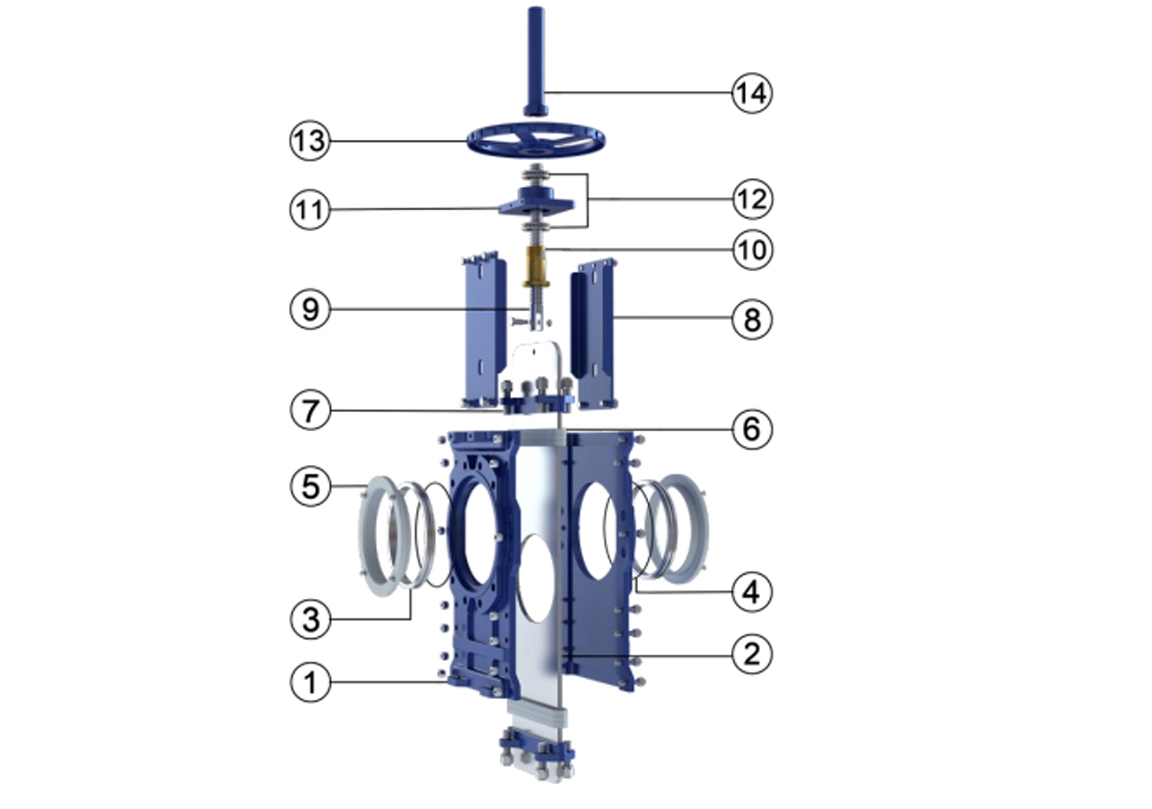

| STANDARD PART LIST | |||
| Parts | WCB | CF8 | CE8M |
| 1. Body | WCB | CF8 | CF8M |
| 2. Gate | 304 | 304 | 316 |
| 3. Seat | Metal/Metal or EPDM | ||
| 4. O-ring | NBR | ||
| 5. Seat Retainer | WCB | CF8 | CF8M |
| 6. Packing | PTFE | ||
| 7. Gland | WCB | CF8 | CF8M |
| 8. Yoke | Q235 | 304 | 304 |
| 9. Stem | 2Cr13 | 2Cr13 | 2Cr13 |
| 10. Stem Nut | Brass | Brass | Brass |
| 11. Bearing Housing | WCB | WCB | WCB |
| 12. Thrust Bearing | 65#Mn | ||
| 13. Hand wheel | GGG30 (Epoxy Coated) | ||
| 14. Stem Protector | 304 | 304 | 304 |
| 15. Fasteners | A2-70 | A2-70 | A4-70 |
