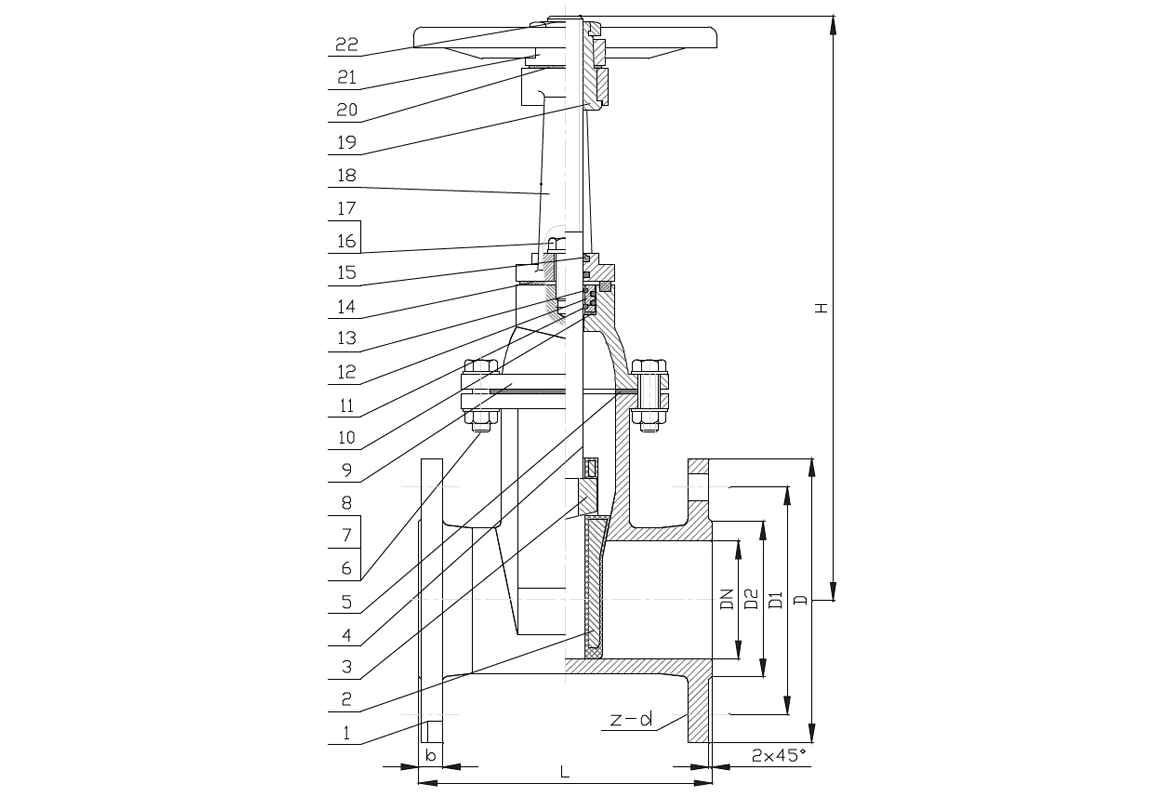

| Material Specification | ||
| NO. | DESCRIPTION | MATERIALS |
| 1 | Body | Ductile Iron |
| 2 | Wedge | Ductile Iron+EPDM |
| 3 | Wedge Nut | Bronze |
| 4 | Stem | SS410 |
| 5 | Gasket | EPDM |
| 6 | Bolt | Carbon Steel |
| 7 | Nut | Carbon Steel |
| 8 | Washer | Carbon Steel |
| 9 | Bonnet | Ductile Iron |
| 10 | Minipad | Teflon |
| 11 | O-Ring | EPDM |
| 12 | Seal Ring | Bronze |
| 13 | O-Ring | EPDM |
| 14 | Minipad | Teflon |
| 15 | Dust Ring | EPDM |
| 16 | Washer | Carbon Steel |
| 17 | Bolt | Carbon Steel |
| 18 | Yoke | Ductile Iron |
| 19 | Stem Nut | Bronze |
| 20 | Minipad | Teflon |
| 21 | Handwheel | Ductile Iron |
| 22 | Locking Nut | Bronze |

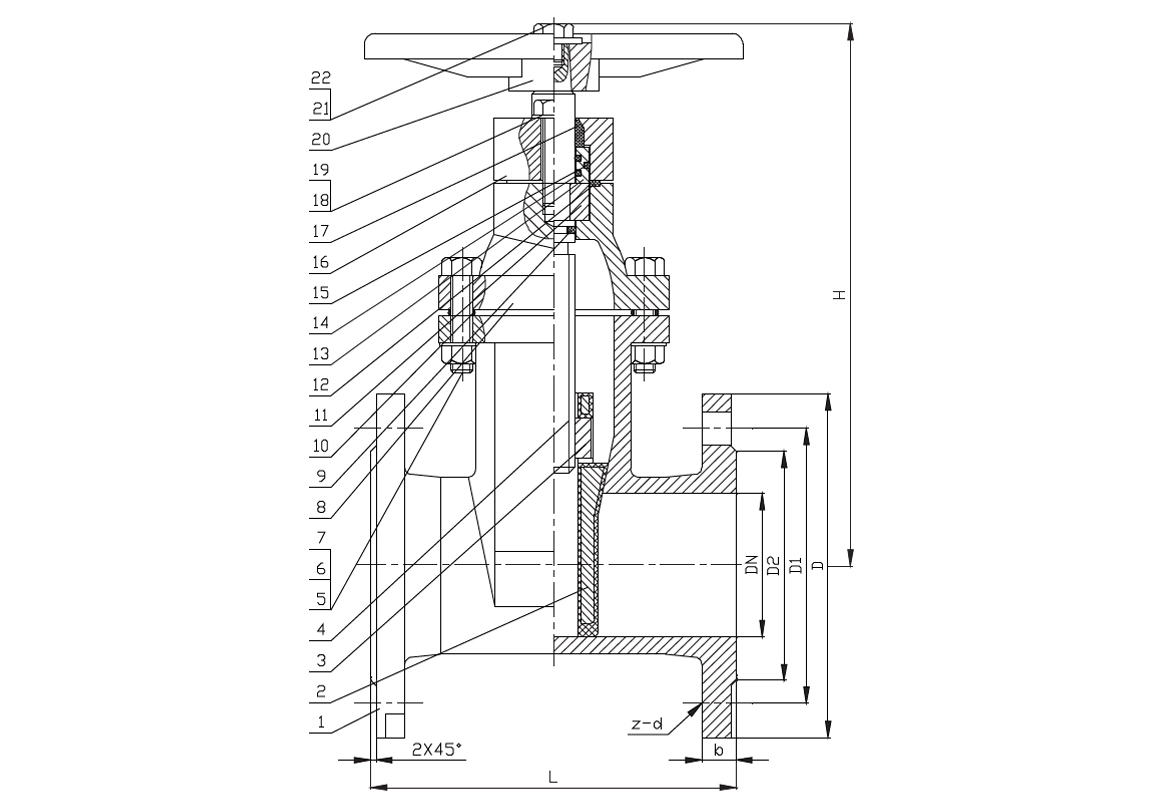

| Material Specification | ||
| NO. | DESCRIPTION | MATERIALS |
| 1 | Body | Ductile Iron |
| 2 | Wedge | Ductile Iron+EPDM |
| 3 | Stem Nut | Bronze |
| 4 | Stem | SS410 |
| 5 | Bonnet Bolt | Carbon Steel |
| 6 | Nut | Carbon Steel |
| 7 | Washer | Carbon Steel |
| 8 | Bonnet | Ductile Iron |
| 9 | Gasket | EPDM |
| 10 | O-Ring | EPDM |
| 11 | Locating Ring | Bronze |
| 12 | Minipad | Teflon |
| 13 | Seal Ring | Bronze |
| 14 | O-Ring | EPDM |
| 15 | O-Ring | EPDM |
| 16 | Gland | Ductile Iron |
| 17 | Dust Ring | EPDM |
| 18 | Washer | Carbon Steel |
| 19 | Bolt | Carbon Steel |
| 20 | Handwheel | Ductile Iron |
| 21 | Nut | Carbon Steel |
| 22 | Washer | Carbon Steel |
