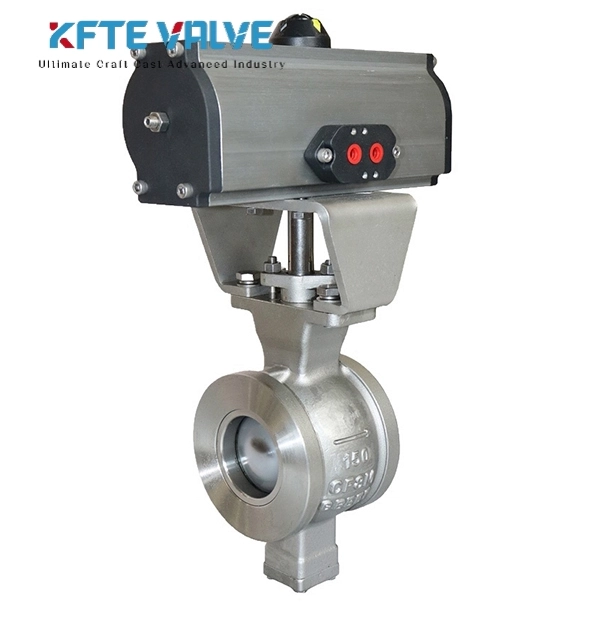

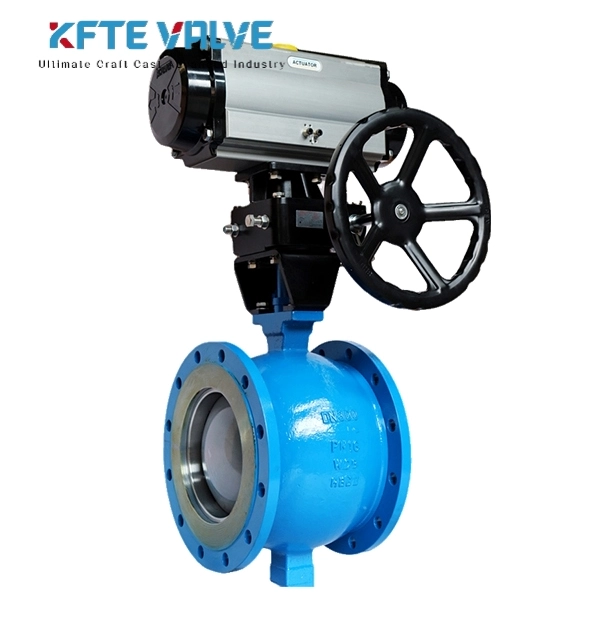

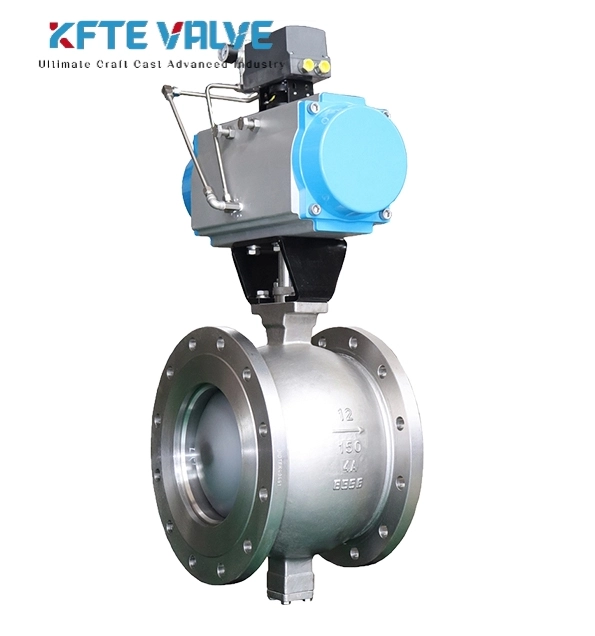

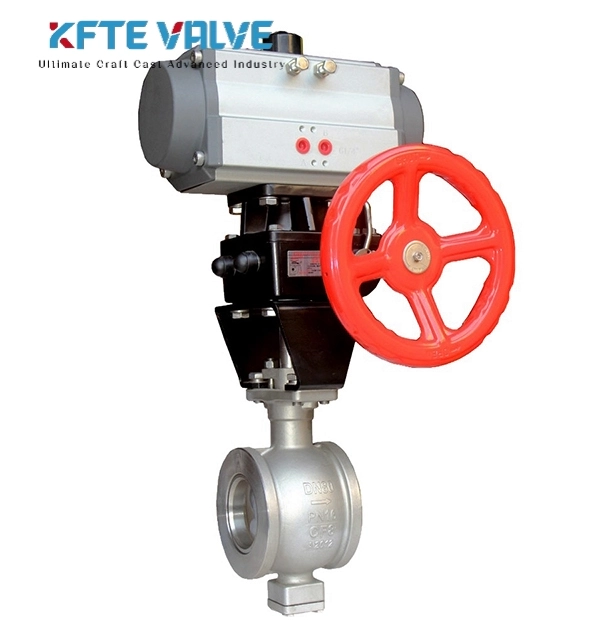

Pneumatic Segment Ball Valve

Applicable Standards

Valve Design: ASME B16.34

Size Range: NPS 1 to 16 | DN 25 to 400

Pressure Ratings: ASME Class 150, 300, 600 | PN 10, 16, 25, 40

Temperature Range: -50°F to 500°F | -46°C to 260°C

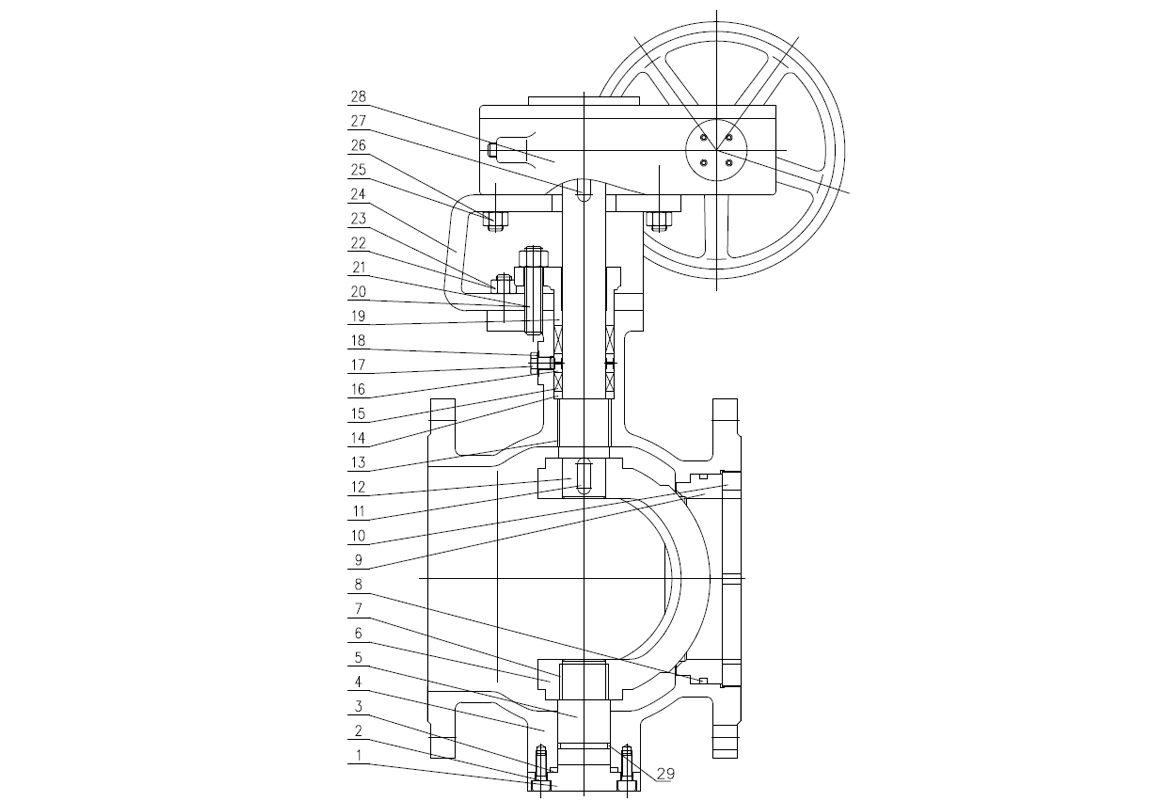

End Connections: Flanged/Wafer

V Port Type: Standard, 60°, 30° /Custom on request

Flange Drilling: ASME B16.5 / EN 1092-1

Top Flange: ISO 5211

Face-to-Face: Flanged-ISA 75.08.02 / ASME B16.10

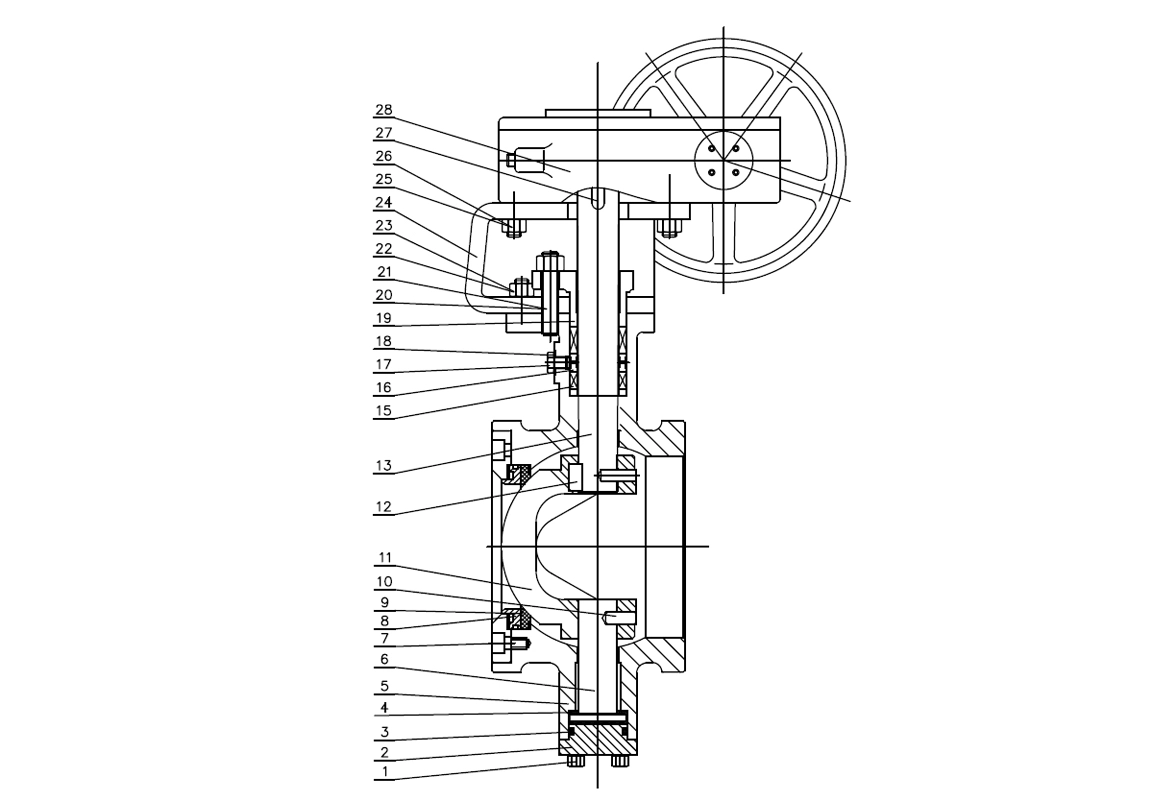

Wafer- KFTE Internal Standard

Leakage Classification: Resilient Seat-Class VI per ANSI/FCI 70-2 | IEC 60534-4

Metal Seat: Class IV per ANSI/FCI 70-2 | IEC 60534-4

Integral body construction

One piece body construction with no flange rings, inserts or end caps to create potential leak paths, even if the valve is subjected to pipe bending forces. Seating capabilities are totally unaffected by pipeline forces, which assures reliable valve operation.

Accurate control

Carefully designed V-ported segment, low torque requirements and clearance-free movement result in good control performance. The design provides steady and gentle contact between the seat and segment at all times to minimize friction while providing tightness. Bearings are located inside the valve body providing larger bearing areas, lower bearing loads and longer bearing life.

V-port Segment Ball

Specially designed V-notch ball provides strong cutting stress and tight sealing. Well ground notched ball surface ensures small operating torque and tight seal, especially for metal seated segment valve.

Seat

Special seat design eliminates cavity between seat and valve body. This, consequently, prevents media from jamming between seat and body, ensure reliable sealing.

Seal Surface

Nitriding/Tungsten Carbide/Satellite Alloy/Nickle Base Alloy plating are available for abrasive media.
