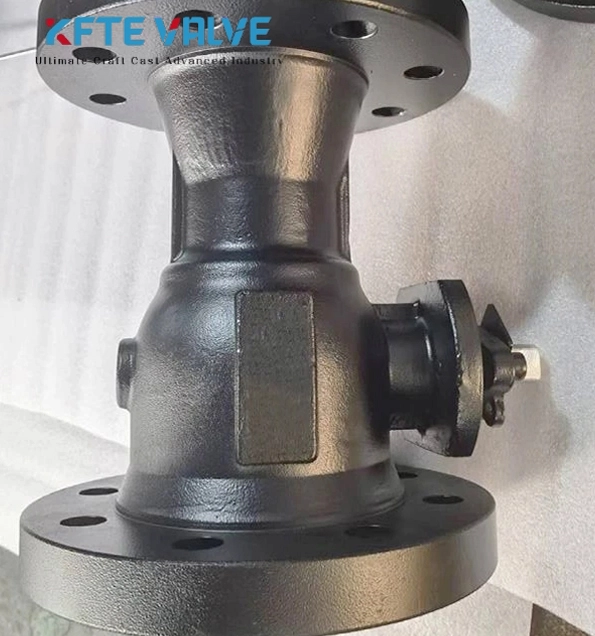

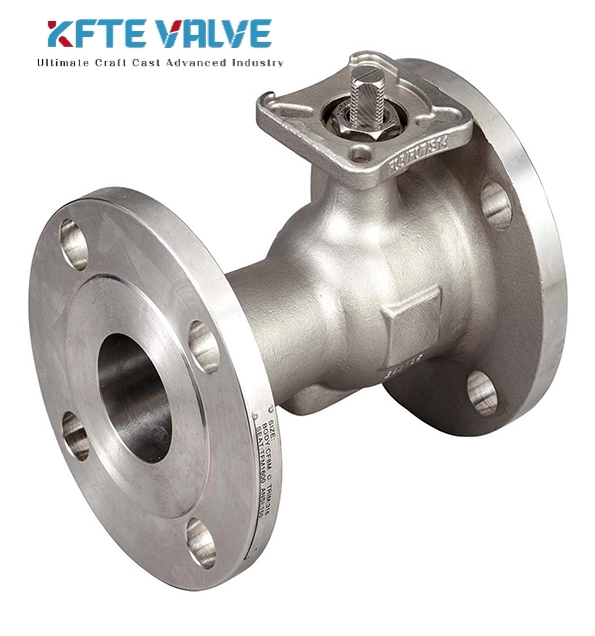

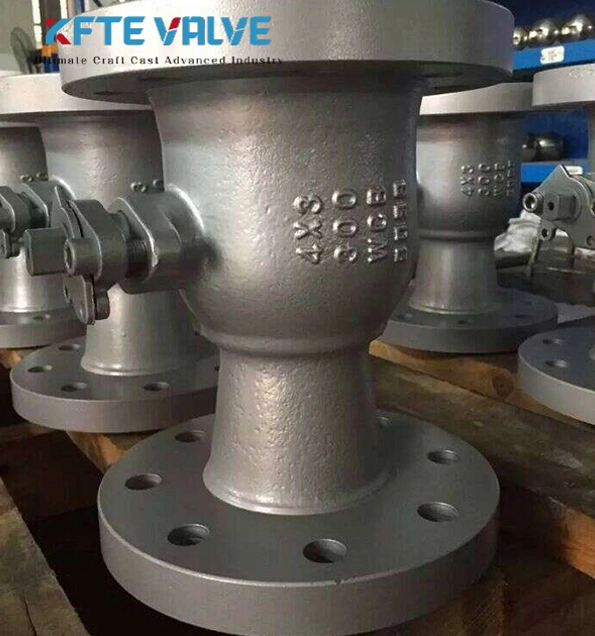

One Piece Ball Valve

The KFTE Unibody flanged end ball valves are constructed from rugged investment castings that are machined to exacting specifications.

Unibody construction provides high structural strength and minimizes external leak paths. Industrial and Oil/Gas piping applications requiring ASME Class 150 or 300 flanged end ball valves with one-piece body construction.


GET A QUOTE
Features
Structural Drawing

Features for One Piece Ball Valve

FEATURES

  • Unibody Construction

  • Fully Compliant to ASME B16.34

  • Fully Compliant to API 608

  • Fully Compliant to API 641 for Fugitive Emissions

  • API 607 6th Edition Fire-Safe

  • All Models are NACE MR0175 Compliant

  • Submerged Packing System & Direct-Mount Actuation

  • Standard ISO Actuator Mounting Pads on All Sizes

  • Standard Locking Stainless Steel Handles

  • Second Generation PTFE Seats Provide Higher Operating Temperatures

  • Standard Electrically Grounded Ball & Stem

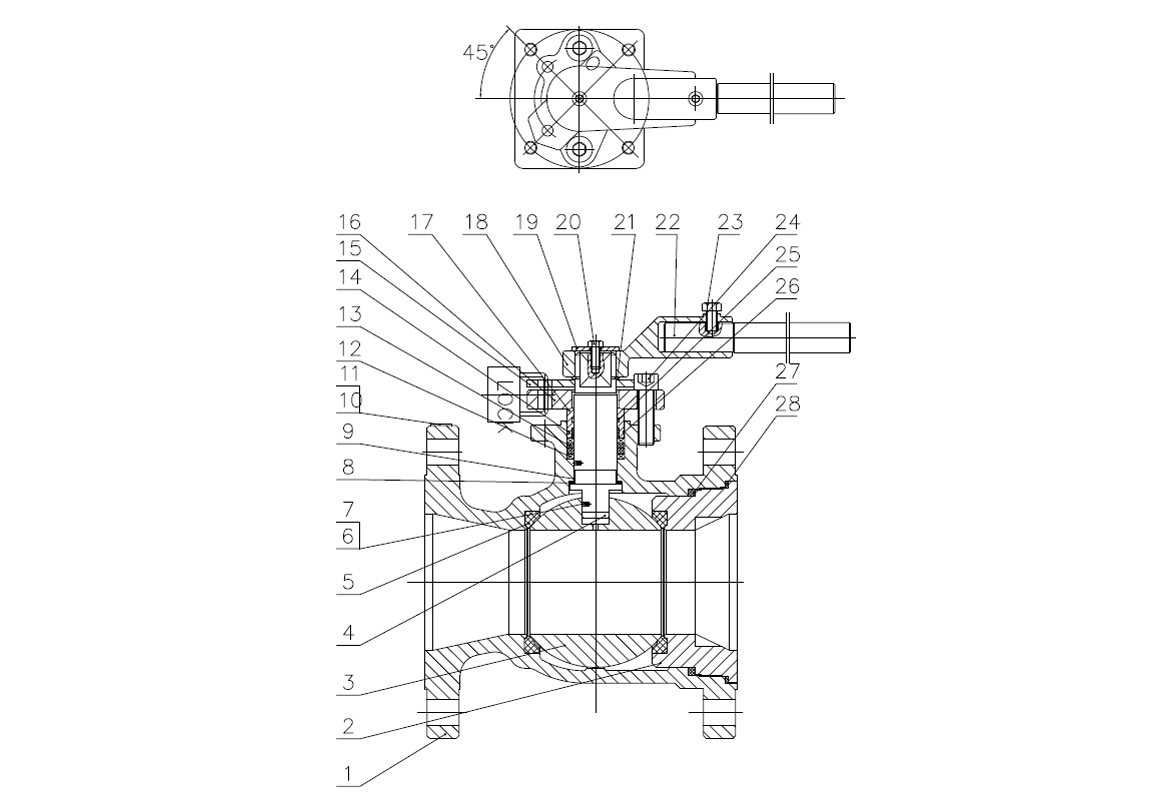

Structural Drawing for One Piece Ball Valve

One Piece Ball Valve Flange Ends
One Piece Ball Valve Flange Ends


Material Specification
NO.DESCRIPTIONCARBON STEELL.T CARBON STEELSTAINLESS STEEL
1BODYA216 WCBA352 LCCA351 CF8/CF8M
2BONNETA105A350 LF2A182 F304/F316
3BALLA182 F304A182 F304A182 F304/F316
4SHAFTA182 F304A182 F304A182 F304/F316
5SEALPTFEPTFEPTFE
6BALLA276 304A276 304A276 304
7SPRINGA276 304A276 304A276 304
8GASKETRPTFERPTFERPTFE
9AXLESTEEL+PTFESTEEL+PTFESTEEL+PTFE
10NAME PLATESS304SS304SS304
11PINCARBON STEELCARBON STEELSTAINLESS STEEL
12FIRE SAFETY RINGSS304+FLEXIBLE GRAPHITESS304+FLEXIBLE GRAPHITESS304+FLEXIBLE GRAPHITE
13FIRE SAFETY RINGSS304+FLEXIBLE GRAPHITESS304+FLEXIBLE GRAPHITESS304+FLEXIBLE GRAPHITE
14AXLESTEEL+PTFESTEEL+PTFESTEEL+PTFE
15LIMIT PLATEA276 304A276 304A276 304
16PACKING GLANDA216 WCBA352 LCCA351 CF8/CF8M
17PACKING BEARINGA276 304A276 304A276 304
18PLUGCARBON STEELCARBON STEELSTAINLESS STEEL
19GLANDCARBON STEEL+ZnCARBON STEEL+ZnSTAINLESS STEEL
20BOLTAISI 1035AISI 1035AISI 1035
21RINGAISI 1566AISI 1566AISI 1566
22LEVERAISI 1025AISI 1025AISI 1025
23BOLTAISI 1035AISI 1035AISI 1035
24BOLTA193 B8A193 B8A193 B8
25O-RINGVITONVITONVITON
26O-RINGVITONVITONVITON
27GASKETPTFEPTFEPTFE
28FIRE SAFETY RINGSS304+FLEXIBLE GRAPHITESS304+FLEXIBLE GRAPHITESS304+FLEXIBLE GRAPHITE
