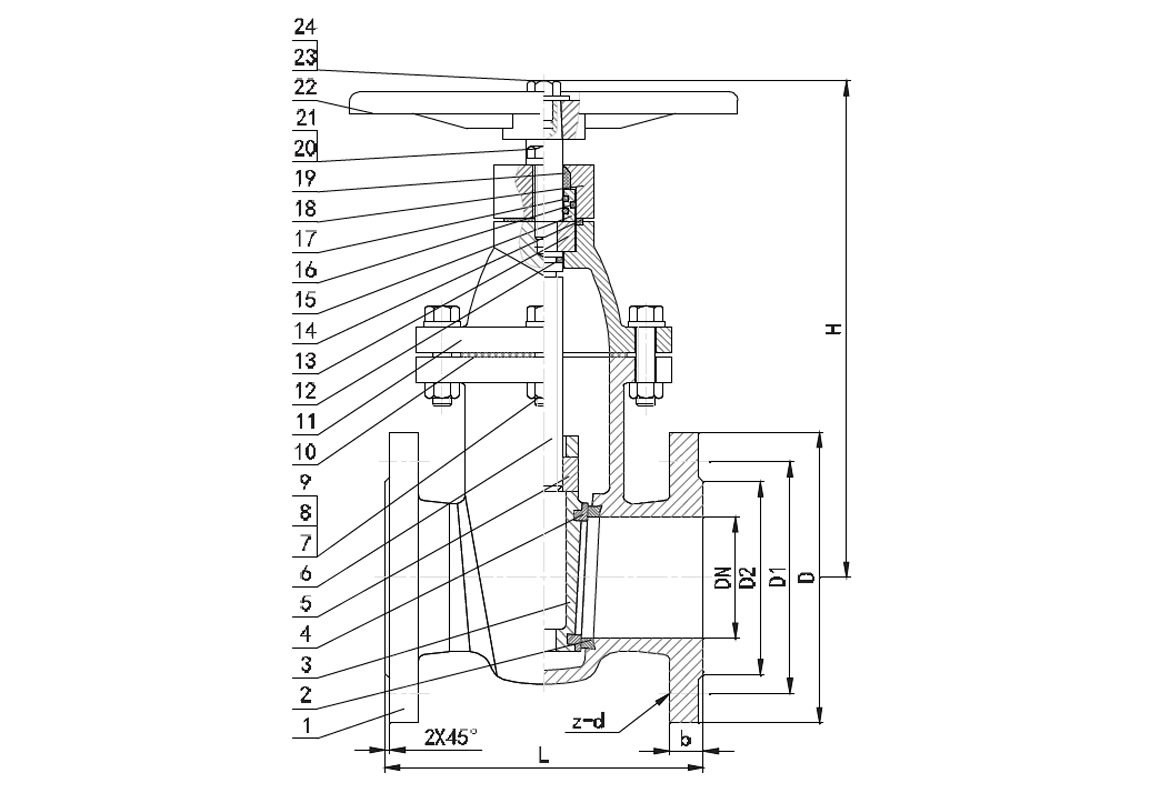

| Material Specification | ||
| NO. | DESCRIPTION | MATERIALS |
| 1 | Body | Ductile Iron |
| 2 | Body Seat Ring | Bronze |
| 3 | Wedge | Ductile Iron |
| 4 | Wedge Seat Ring | Bronze |
| 5 | Stem Nut | Bronze |
| 6 | Stem | SS410 |
| 7 | Bonnet Bolt | Carbon Steel |
| 8 | Nut | Carbon Steel |
| 9 | Washer | Carbon Steel |
| 10 | Gasket | NBR |
| 11 | Bonnet | Ductile Iron |
| 12 | O-Ring | NBR |
| 13 | Locating Ring | Bronze |
| 14 | Minipad | Teflon |
| 15 | Seal Ring | Bronze |
| 16 | O-Ring | NBR |
| 17 | O-Ring | NBR |
| 18 | Gland | Ductile Iron |
| 19 | Dust Ring | NBR |
| 20 | Bolt | Carbon Steel |
| 21 | Washer | Carbon Steel |
| 22 | Handwheel | Ductile Iron |
| 23 | Washer | Carbon Steel |
| 24 | Bolt | Carbon Steel |

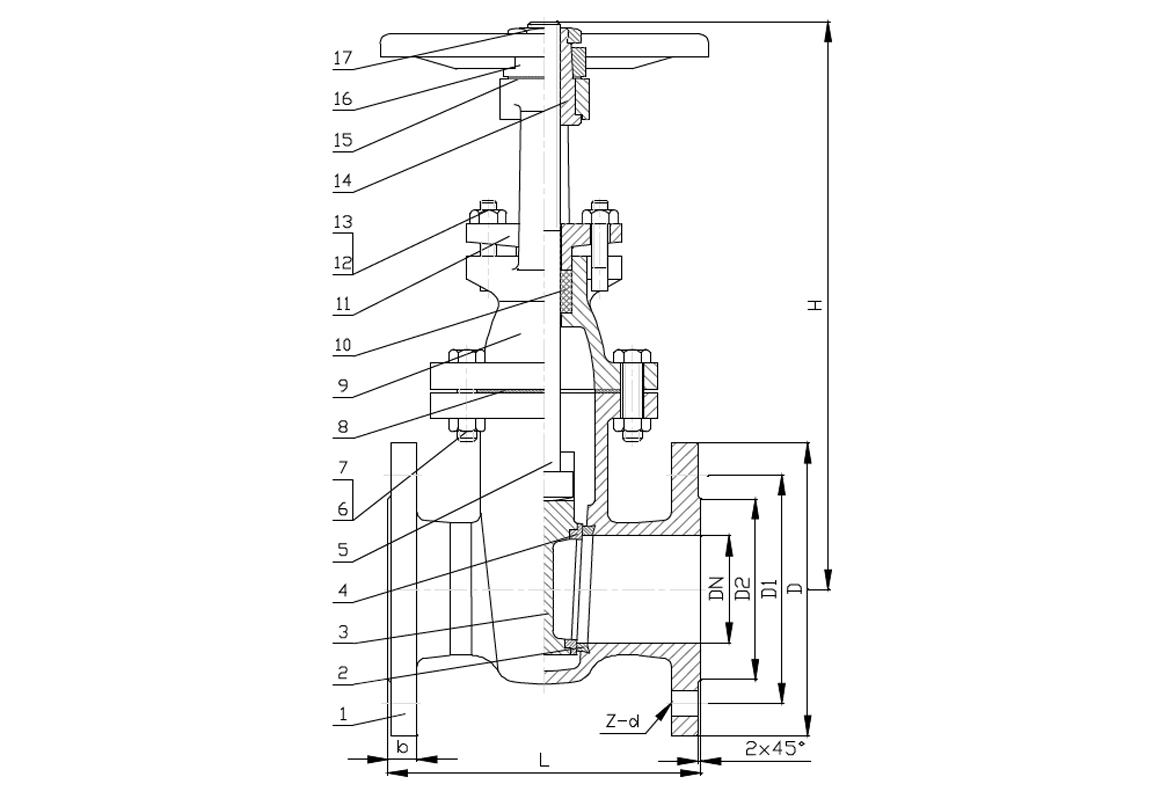

| Material Specification | ||
| NO. | DESCRIPTION | MATERIALS |
| 1 | Body | Ductile Iron |
| 2 | Body Seat Ring | Bronze |
| 3 | Wedge | Ductile Iron |
| 4 | Wedge Seat Ring | Bronze |
| 5 | Stem | SS410 |
| 6 | Bonnet Bolt | Carbon Steel |
| 7 | Nut | Carbon Steel |
| 8 | Gasket | NBR |
| 9 | Bonnet | Ductile Iron |
| 10 | Packing | Graphite |
| 11 | Gland | Ductile Iron |
| 12 | Bolt | Carbon Steel |
| 13 | Nut | Carbon Steel |
| 14 | Stem Nut | Bronze |
| 15 | Washer | Carbon Steel |
| 16 | Handwheel | Ductile Iron |
| 17 | Locking Nut | Bronze |

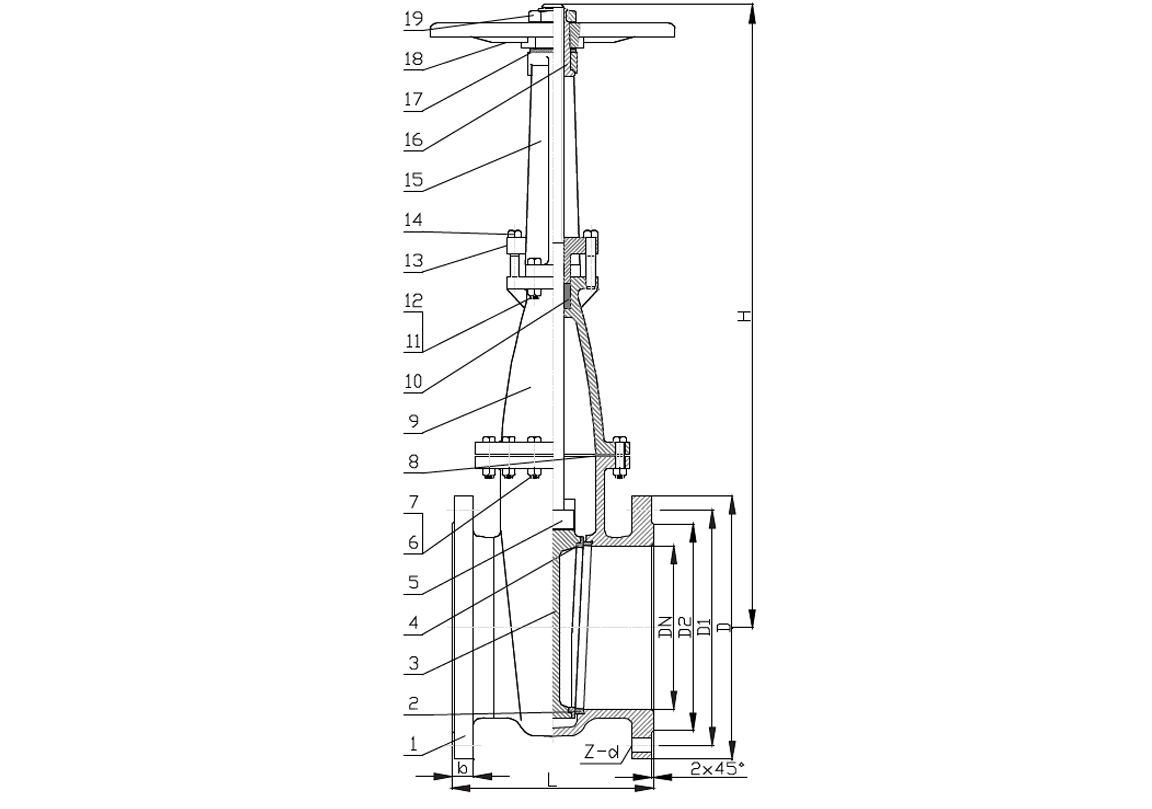

| Material Specification | ||
| NO. | DESCRIPTION | MATERIALS |
| 1 | Body | Ductile Iron |
| 2 | Body Seat Ring | Bronze |
| 3 | Wedge | Ductile Iron |
| 4 | Wedge Seat Ring | Bronze |
| 5 | Stem | SS410 |
| 6 | Bonnet Bolt | Carbon Steel |
| 7 | Nut | Carbon Steel |
| 8 | Gasket | NBR |
| 9 | Bonnet | Ductile Iron |
| 10 | Packing | Graohite |
| 11 | Bolt | Carbon Steel |
| 12 | Nut | Carbon Steel |
| 13 | Gland | Ductile Iron |
| 14 | Bolt | Carbon Steel |
| 15 | Yoke | Ductile Iron |
| 16 | Stem Nut | Bronze |
| 17 | Washer | Carbon Steel |
| 18 | Handwheel | Ductile Iron |
| 19 | Locking Nut | Bronze |
