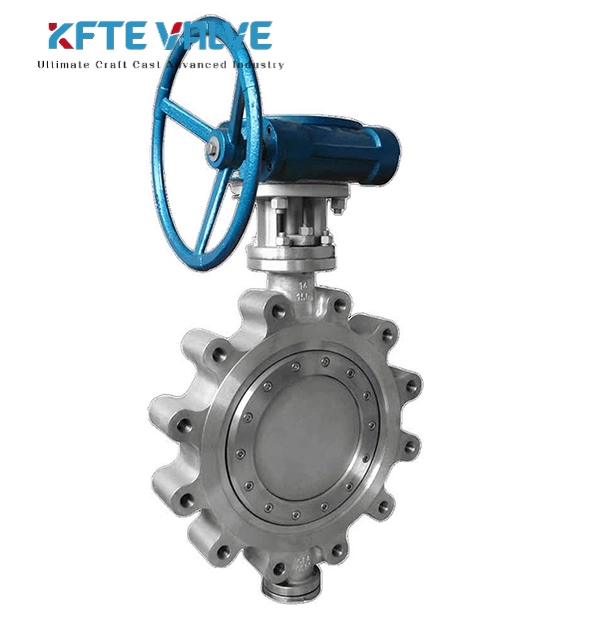

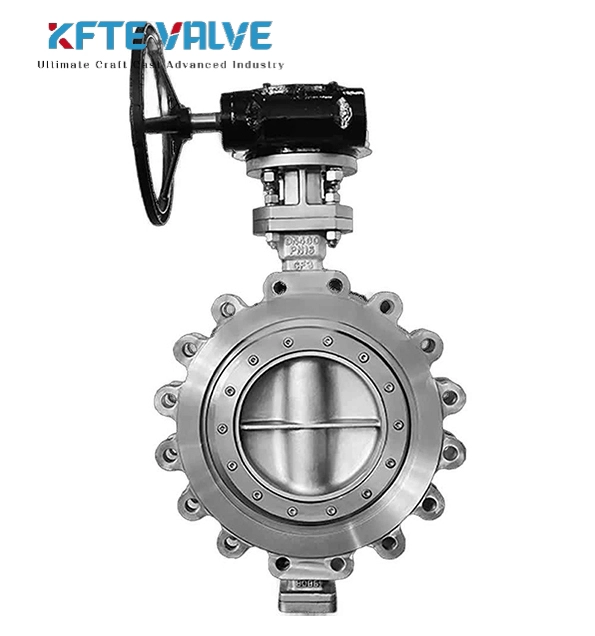

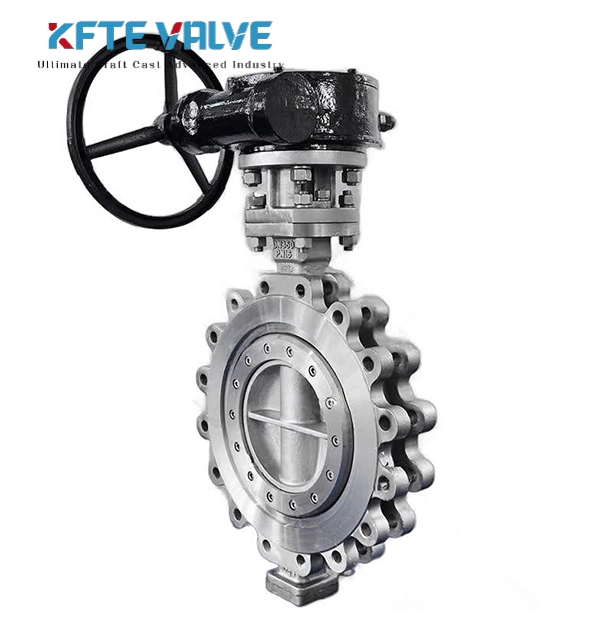

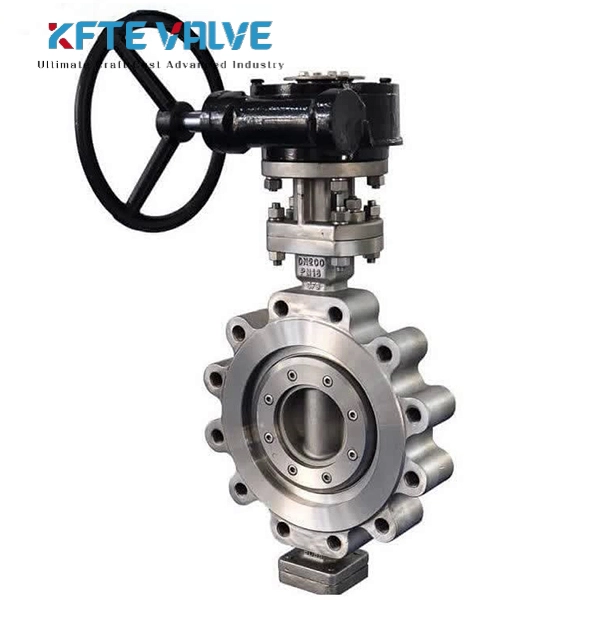

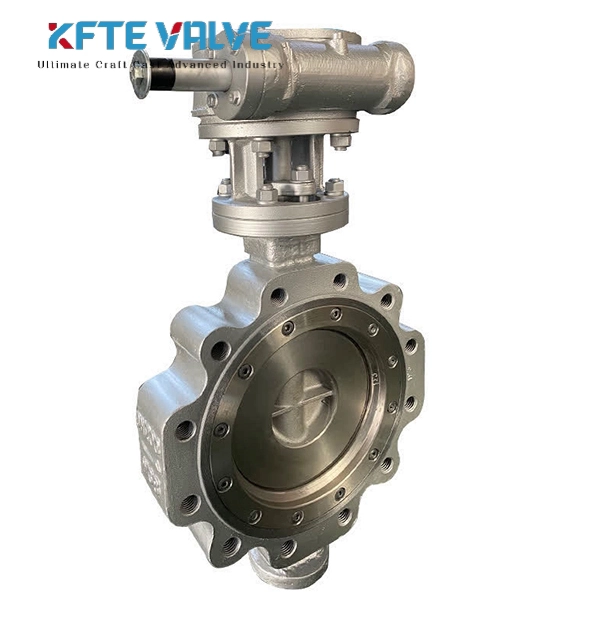

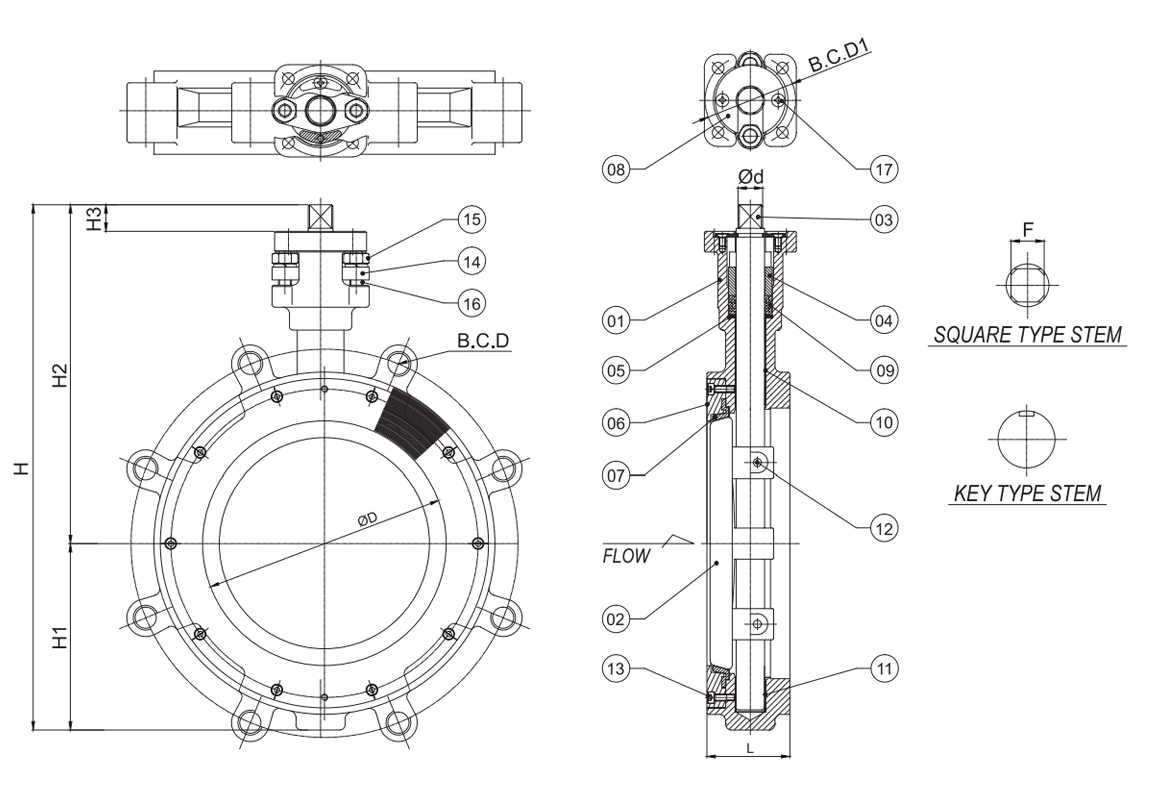

Lug High Performance Butterfly Valve

Design Standards

Design Standard: API 609

Size: 3"(DN80)-36"(DN900) Pressure: 150LB-300LB / PN16- PN40 Material: WCB, WCC, WC6, WC9, C5, C12, C12A, LCB, LCC, LC1, LC3, CF8, CF8M, CF3, CF3M, CF8C

Flanged End Connection: ASME B16.5 / ASME B16.47; EN1092-1

Face-to-Face: API 609 / ASME B16.10

Test & Inspection: API 609 / ASME B16.10

Fire-Safe: API 607

Low Fugitive Emission: ISO 15848-2015

NACE Construction: MR 0715

Double Offset Design

The unique sealing system also incorporates a double eccentric disc and shaft design to further extend the effectiveness of the seat. This unique offset design transmits a camming action to the disc and swings the disc completely away from the seat, no jamming or squeegeeing. This design elimi nates wear points around the disc at the top and bottom of the seat. When closed, the disc cams tightly into its seat to create a double-tight seal.

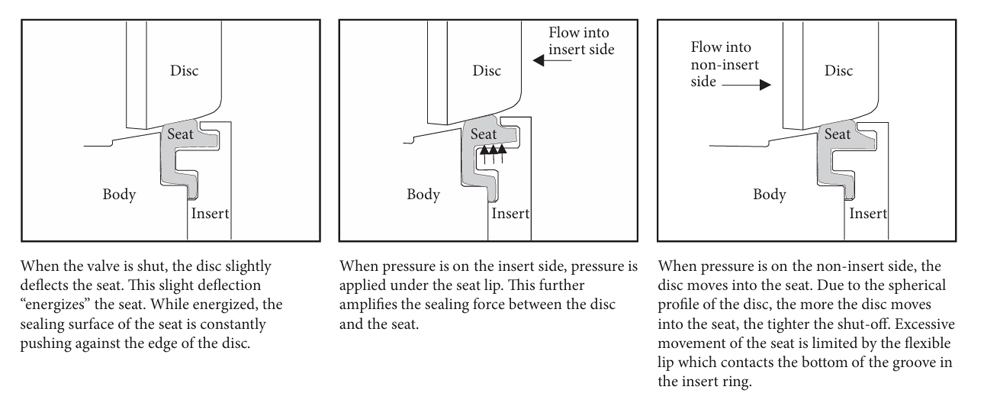

Unique polymeric soft sealing provides trouble-free operation (Energized Seat Design)
