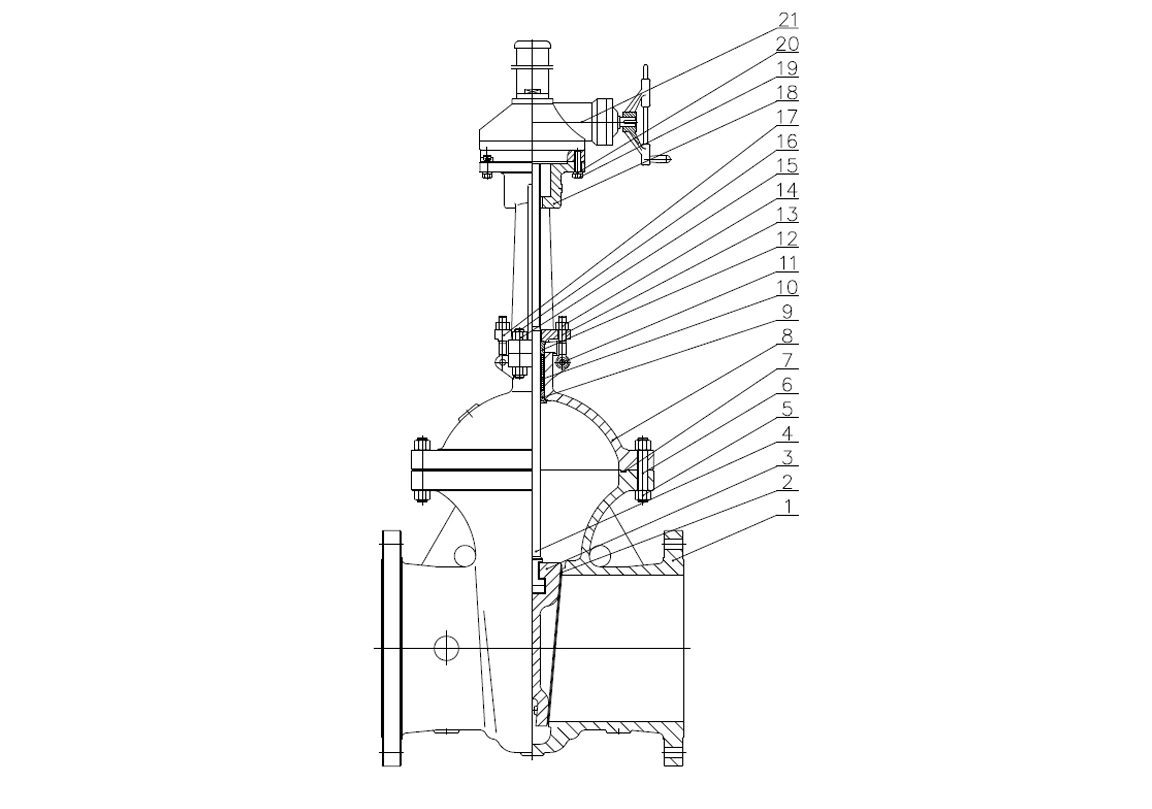

| Material Specification | ||
| NO. | DESCRIPTION | SS304/SS316 |
| 1 | BODY | A351 CF8/CF8M |
| 2 | SEAL | STL OVERLAID ON BODY |
| 3 | GATE | A351 CF8/CF8M+STL |
| 4 | SHAFT | A182 F304/F316 |
| 5 | NUT | A194 8M |
| 6 | BOLT | A193 B8M |
| 7 | GASKET | SS3304+GRAPHITE |
| 8 | BONNET | A351 CF8/CF8M |
| 9 | BACK SEAT | A182 F304/F316 |
| 10 | PACKING | GRAPHITE |
| 11 | PIN | STAINLESS STEEL |
| 12 | PACKING SLEEVE | A182 F304/F316 |
| 13 | EYEBOLT | A193 B8M |
| 14 | NUT | A194 8M |
| 15 | NUT | A194 8M |
| 16 | BOLT | A193 B8M |
| 17 | PACKING GLAND | A351 CF8/CF8M |
| 18 | YOKE | A351 CF8/CF8M |
| 19 | BOLT | A193 B8M |
| 20 | SPRING GASKET | 65Mn |
| 21 | GEAR | - |

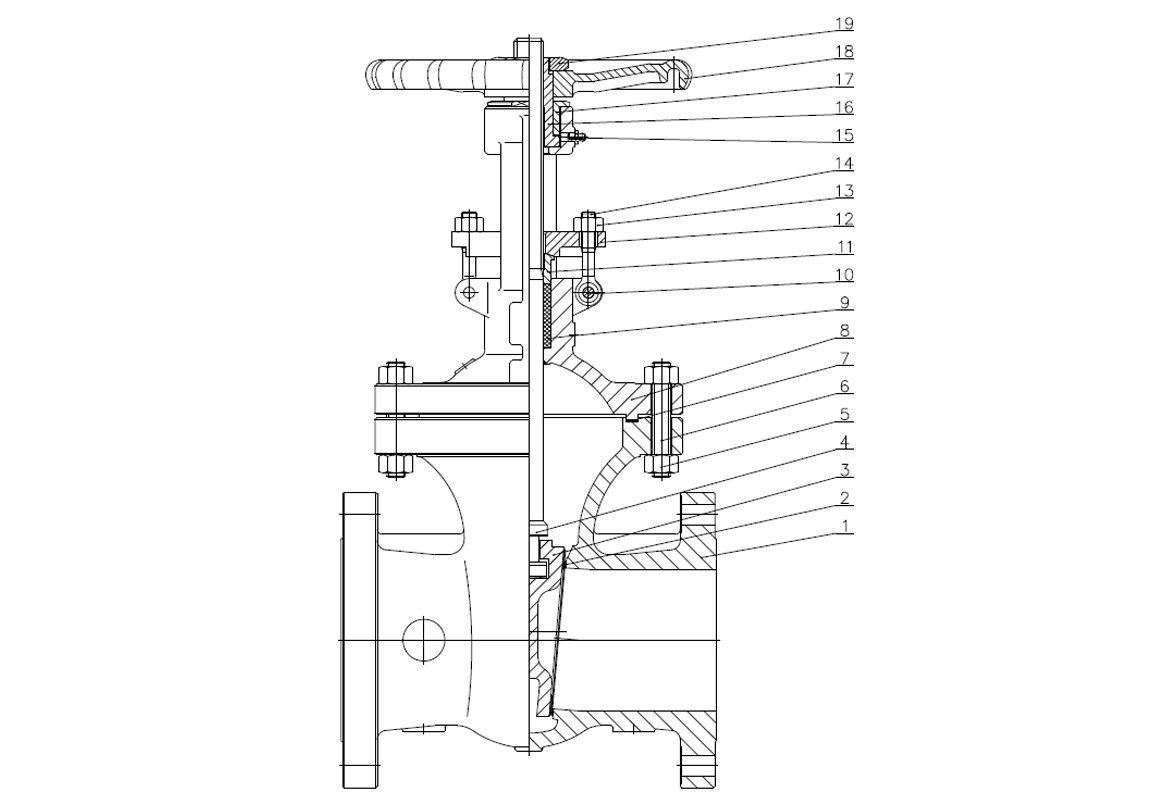

| Material Specification | ||
| NO. | DESCRIPTION | SS304/SS316 |
| 1 | BODY | A351 CF8/CF8M |
| 2 | SEAL | STL OVERLAID ON BODY |
| 3 | GATE | A351 CF8/CF8M+STL |
| 4 | SHAFT | A182 F304/F316 |
| 5 | NUT | A194 8M |
| 6 | BOLT | A193 B8M |
| 7 | GASKET | SS304+GRAPHITE |
| 8 | YOKE | A351 CF8/CF8M |
| 9 | PACKING | GRAPHITE |
| 10 | PIN | STAINLESS STEEL |
| 11 | PACKING SLEEVE | A182 F304/F316 |
| 12 | PACKING GLAND | A351 CF8/CF8M |
| 13 | NUT | A194 8M |
| 14 | BOLT | A193 B8M |
| 15 | OIL FILLER | COPPER |
| 16 | SHAFT NUT | ASTM A439 D2 |
| 17 | GLAND | ASTM 1035 |
| 18 | HAND WHEEL | - |
| 19 | HAND WHEEL CAP | ASTM 1035 |
