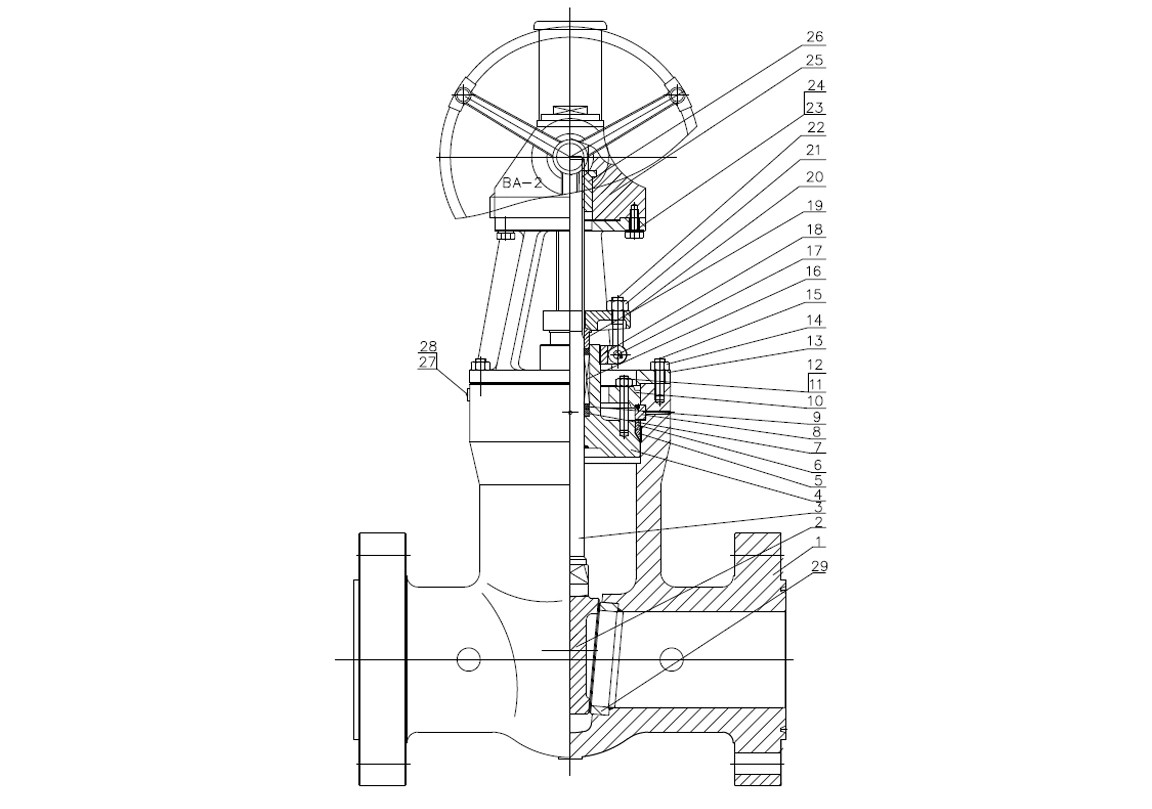

| Material Specification | |||
| NO. | DESCRIPTION | CARBON STEEL | H.T ALLOY STEEL |
| 1 | BODY | A216 WCB | A217 WC9 |
| 2 | GATE | A216 WCB+STL | A217 WC9+STL |
| 3 | SHAFT | A182 F6A | A182 F6A |
| 4 | BONNET | A216 WCB | A217 WC9 |
| 5 | SEAL RING | A182 F6A | A182 F6A |
| 6 | GASKET RING | ASTM A276 410 | ASTM A276 410 |
| 7 | PACKING GASKET | ASTM A276 410 | ASTM A276 410 |
| 8 | OPEN RING | ASTM A276 410 | ASTM A276 410 |
| 9 | PACKING GASKET | SS304+GRAPHITE | SS304+GRAPHITE |
| 10 | GLAND RING | ANSI 1025 | ANSI 1025 |
| 11 | NUT | A194 2H | A194 4 |
| 12 | BOLT | A193 B7 | A193 B16 |
| 13 | YOKE | A216 WCB | A217 WC9 |
| 14 | NUT | A194 2H | A194 4 |
| 15 | BOLT | A193 B7 | A193 B16 |
| 16 | PACKING | FLEXIBLE GRAPHITE | FLEXIBLE GRAPHITE |
| 17 | PIN | ANSI 1035 | ANSI 1035 |
| 18 | SLEEVE | A216 WCB | A217 WC9 |
| 19 | PACKING SLEEVE | ASTM A276 410 | ASTM A276 410 |
| 20 | PACKING GLAND | A216 WCB | A217 WC9 |
| 21 | NUT | A194 2H | A194 4 |
| 22 | BOLT | A193 B7 | A193 B16 |
| 23 | BOLT | A193 B7 | A193 B16 |
| 24 | GASKET | 65Mn | 65Mn |
| 25 | GEAR | - | - |
| 26 | STEM NUT | ASTM A439 D2 | ASTM A439 D2 |
| 27 | NAME PLATE | STAINLESS STEEL | STAINLESS STEEL |
| 28 | PIN | STAINLESS STEEL | STAINLESS STEEL |
| 29 | SEAT RING | A105+STL | A182 F22+STL |

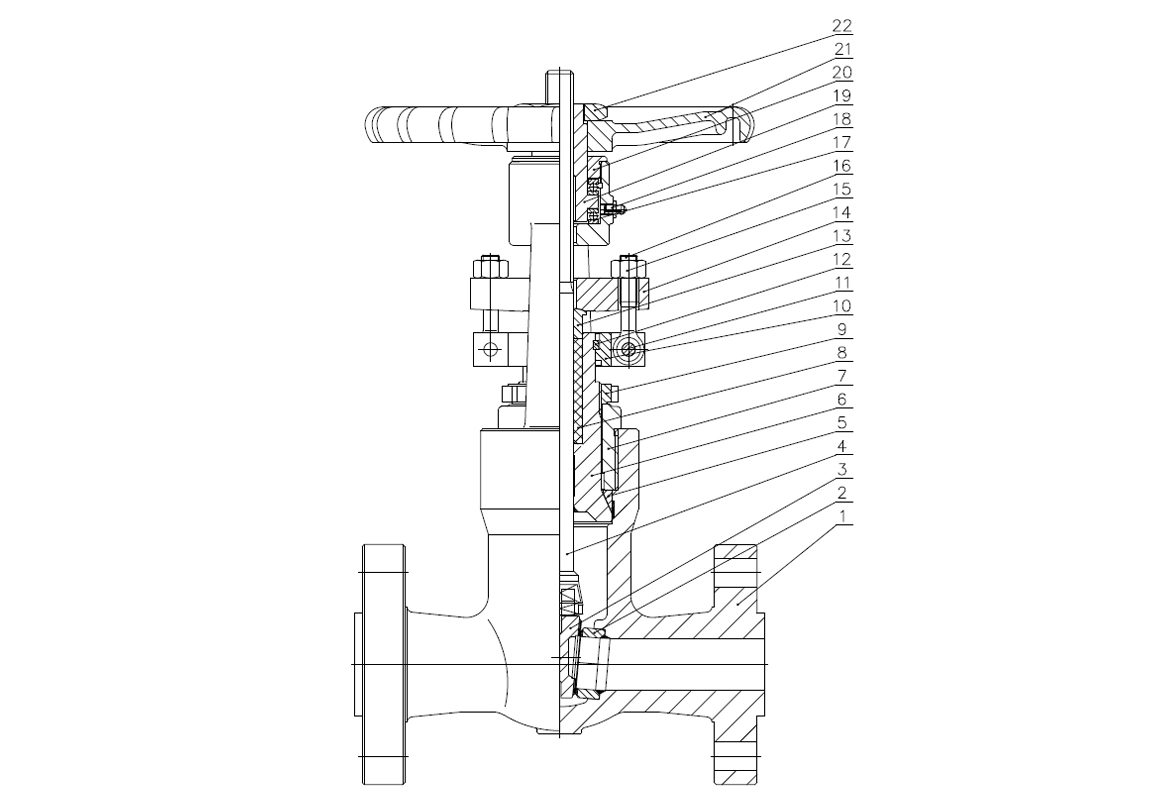

| Material Specification | |||
| NO. | DESCRIPTION | CARBON STEEL | H.T ALLOY STEEL |
| 1 | BODY | A216 WCB | A217 WC9 |
| 2 | SEAT RING | A105+STL | A182 F22+STL |
| 3 | GATE | A216 WCB+STL | A217 WC9+STL |
| 4 | SHAFT | A182 F6A | A182 F304 |
| 5 | BACK SEAT | A182 F6A | A182 F304 |
| 6 | BONNET | A105 | A182 F22 |
| 7 | YOKE | A216 WCB | A217 WC9 |
| 8 | PACKING | GRAPHITE | GRAPHITE |
| 9 | LOCK NUT | A105 | A182 F22 |
| 10 | GLAND | A216 WCB | A217 WC9 |
| 11 | PIN | CARBON STEEL | CARBON STEEL |
| 12 | OPEN RING | ASTM A276 420 | ASTM A276 420 |
| 13 | PACKING SLEEVE | ASTM A276 410 | ASTM A276 410 |
| 14 | PACKING GLAND | A216 WCB | A217 WC9 |
| 15 | NUT | A194 2H | A194 4 |
| 16 | EYEBOLT | A193 B7 | A193 B16 |
| 17 | BEARING | - | - |
| 18 | OIL FILLER | COPPER | COPPER |
| 19 | STEM NUT | ASTM A439 D2 | ASTM A439 D2 |
| 20 | BEARING GLAND | A105 | A182 F22 |
| 21 | HAND WHEEL | - | - |
| 22 | NUT | A193 B7 | A193 B16 |
