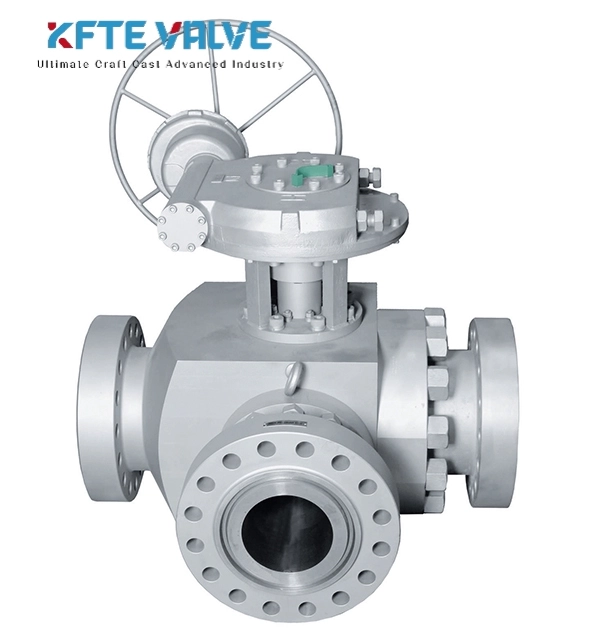

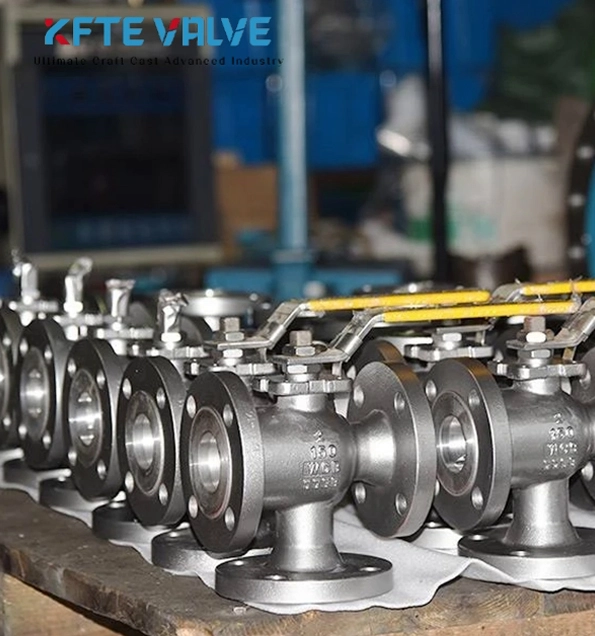

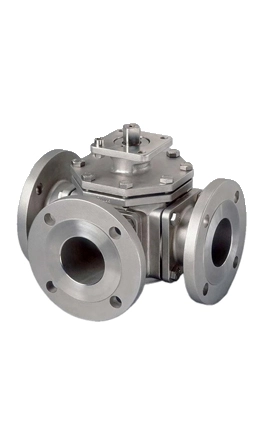

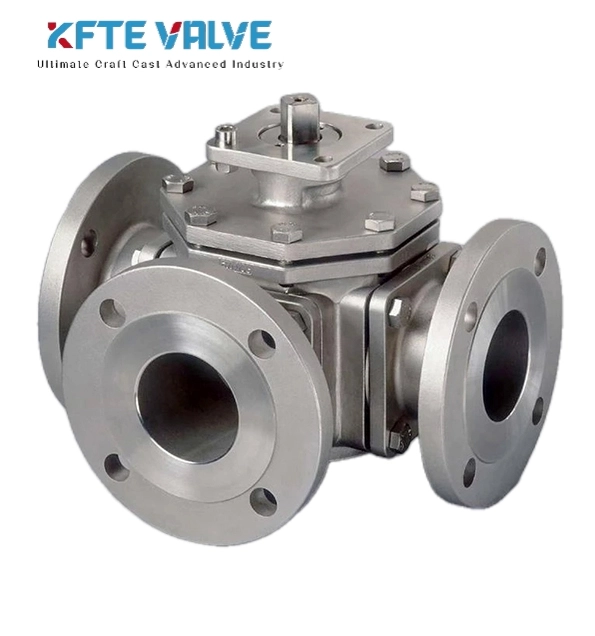

Three way ball valves can either have the L-pattern or the T-pattern. The three way ball valve emerges as a critical solution for directing flow across multiple pathways. Renowned for its adaptability, the three way valve is available in various materials to cater to diverse industry needs. For environments requiring corrosion resistance and lightweight construction, the 3 way PVC ball valve is an ideal choice, offering durability and ease of installation. Conversely, the 3 way SS ball valve, crafted from stainless steel, provides superior strength and resistance to high-pressure conditions, making it suitable for demanding industrial applications. Three way ball valves are instrumental in optimizing processes in sectors such as chemical manufacturing, water treatment, and oil and gas, where precise flow control is paramount.
Features:
Positive alignment of body.
Blow-out proof stem for safety.
Sphericity tolerance of the ball is unsurpassed.
Multiple layers of adjustable PTFE chevron packing rings for standard model enable excellent fugitive emission control.
Positive position indication.
Locking device capable.
Heavy duty body construction.
Machined ISO 5211 top mounting flange.
Live load springs keep constant force on stem-seal packing, ensuring seal integrity and extended valve life.
Dual shaft bearings for high cycle life operation.
Higher Cv values and less cost for diverting which can be normally done with multiple installation of valves.
Machined firesafe lip for metal touch to ball in case of fire. It also eliminates possibility of seat deformation.
Lower operating torque, easing operation and reducing actuator cost.
Technical Data:
Full bore: DN 40 - 350 (NPS 1½ - 14)
Reduced bore: DN 125 - 350 (NPS 5 - 14)
Pressure rating: ASME Class 150, 300, 600 JIS 10K, 20K, 40K
Temperature: -29°C to 270°C (-20°F - 518°F) (Option: up to 500°C/932°F)

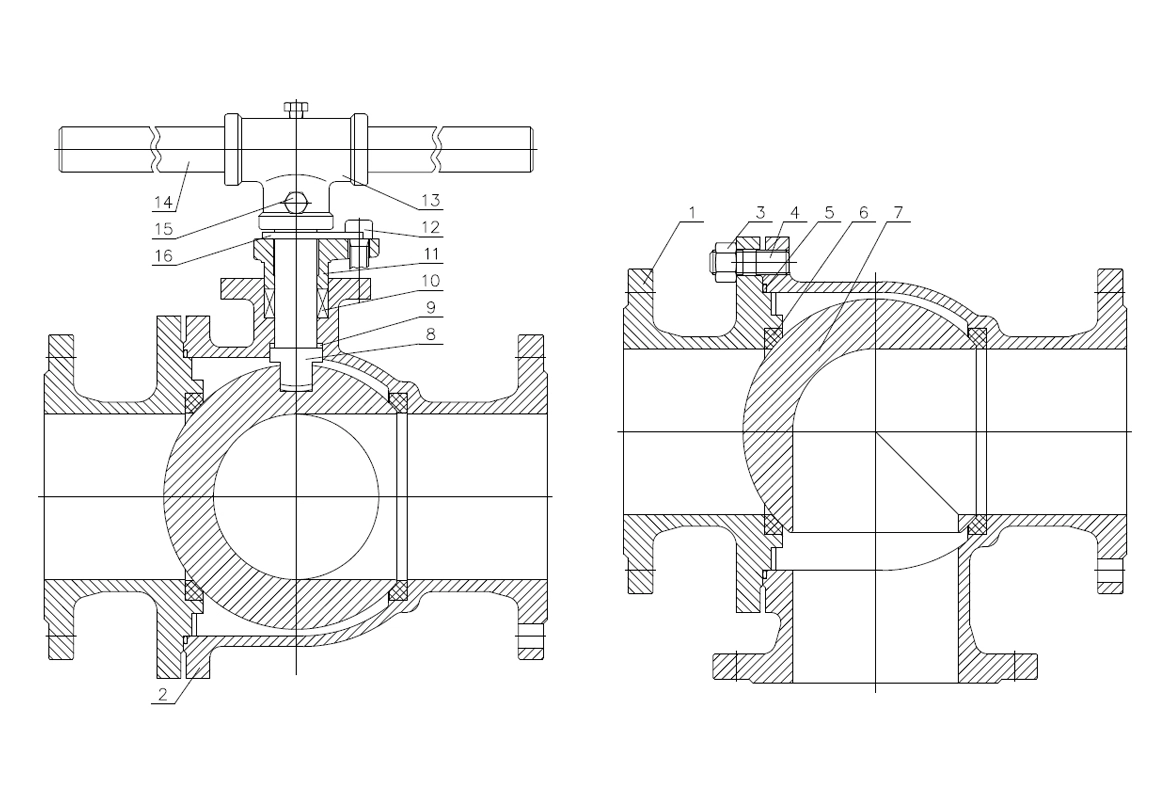

| Material Specification | |||
| NO. | DESCRIPTION | CARBON STEEL | STAINLESS STEEL |
| 1 | CAP | A216 WCB | A351 CF8/CF8M |
| 2 | BODY | A216 WCB | A351 CF8/CF8M |
| 3 | NUT | A193 B7 | A193 B8M |
| 4 | NUT | A194 2H | A194 8M |
| 5 | O-RING | VITON | VITON |
| 6 | SEAL | PTFE | PTFE |
| 7 | BALL | SS304 | SS304/SS316 |
| 8 | SHAFT | A182 F6A | A182 F304/F316 |
| 9 | SHAFT GASKET | PTFE | PTFE |
| 10 | PACKING | PTFE | PTFE |
| 11 | PACKING GLAND | A216 WCB | A351 CF8/CF8M |
| 12 | BOLT | A193 B7 | A193 B8M |
| 13 | TEE | A216 WCB | A216 WCB |
| 14 | POLE | CARBON STEEL | CARBON STEEL |
| 15 | BOLT | A193 B7 | A193 B8M |
| 16 | BLOCK | CARBON STEEL | SS304 |
