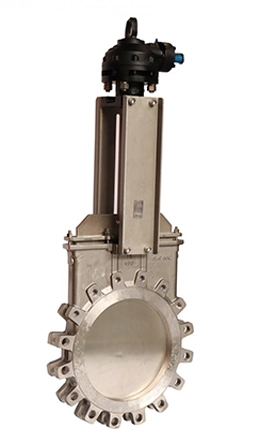

Knife gate valves are so-called because of their ability to cut through media containing solids. They work by lifting a round or rectangular gate out of the path of the media. The sealing surfaces between the gate and seats are planar, so knife gate valves are often used when a straight-line flow of fluid and minimum restriction is needed. Knife gate valves were designed for specific use in the pulp and paper industry. This was due to stringy pulp impinging between the wedge and seat of a normal gate valve and preventing flow shut-off. Knife gate valves have seen extensive use involving slurry, viscous fluids, and other applications where impingement is an issue and are used not only in pulp and paper production but are also widely used in municipal wastewater pumping stations and sewage treatment plants.
1. Sealing Performance
Bi-Directional or Uni-Directional Sealing: Designed to handle slurries and viscous media, knife gate valves often feature a sharp, blade-like gate that cuts through solids for a tight seal. Some models are uni-directional (sealing against pressure from one side), while others offer bi-directional sealing.
Zero Leakage: Elastomeric seats (e.g., EPDM, Buna-N) or metal-to-metal seals ensure minimal leakage, critical in harsh environments like wastewater treatment or mining.
Pressure Differential Handling: Effective in maintaining seals under varying pressure conditions, especially in uni-directional designs.
2. Material and Durability
Abrasion Resistance: Constructed from hardened materials (e.g., stainless steel gates, carbon steel bodies) to withstand abrasive slurries.
Corrosion Resistance: Materials like SS316 or specialty alloys cater to corrosive fluids in chemical or marine applications.
Temperature Tolerance: Elastomer seats determine operational temperature ranges (typically -20°C to 200°C), while metal seats extend limits.
3. Operational Efficiency
Full Bore Design: Unobstructed flow path minimizes pressure drop and allows passage of solids without clogging.
Low Maintenance: Simple design with fewer components enables easy seat/gate replacement, often without removing the valve from the pipeline.
Compact and Lightweight: Easier installation in space-constrained areas compared to bulkier valve types.
4. Pressure and Flow Handling
Low to Medium Pressure: Typically rated for up to Class 300 (PN50), suitable for systems not requiring high-pressure resistance.
On/Off Functionality: Optimized for isolation rather than throttling, as throttling can cause erosion or vibration.
5. Actuation and Control
Versatile Actuation: Manual, pneumatic, hydraulic, or electric actuation options cater to automation needs. Fast response times critical for emergency shutdowns.
Torque Requirements: Low operating torque due to lightweight design, reducing actuator costs.
6. Design and Installation
Wafer, Lug, or Flanged Connections: Flexibility in pipeline integration.
Orientation Flexibility: Can be installed vertically or horizontally, depending on application needs.
Knife gate valves are specialized for handling dense, viscous, and abrasive fluids. Their design features a sharp, blade-like gate that cuts through materials, making them ideal for industries dealing with slurries, solids, and corrosive substances.
1. Mining and Mineral Processing
Applications: Slurry transport, tailings management, dewatering systems.
Benefits: Handles abrasive ores and high solids content; robust construction resists wear.
2. Wastewater and Sewage Treatment
Applications: Sludge handling, grit removal, effluent control.
Benefits: Tight seal prevents leakage; suitable for viscous fluids with debris.
3. Pulp and Paper Industry
Applications: Fibrous slurry control, black liquor handling, stock preparation.
Benefits: Prevents clogging with fibrous materials; corrosion-resistant materials (e.g., stainless steel).
4. Oil and Gas
Applications: Sand-laden crude oil, frac sand handling, pipeline isolation.
Benefits: Manages abrasive and corrosive fluids; uni-directional/bi-directional flow options.
5. Chemical Processing
Applications: Corrosive chemical transfer, viscous polymer handling.
Benefits: Compatible with aggressive chemicals; rubber-lined or alloy options.
6. Construction and Cement
Applications: Concrete slurry transport, mortar systems.
Benefits: Minimal pressure drop; easy maintenance for high-solids mixtures.
7. Power Generation
Applications: Coal ash slurry, flue gas desulfurization (FGD).
Benefits: Durable in abrasive environments; cost-effective for moderate pressure/temperature.
8. Dredging and Marine
Applications: Sediment-laden water transport, ballast systems.
Benefits: Handles large solids; robust against debris in marine environments.
9. Agriculture
Applications: Irrigation with sediment-rich water, fertilizer slurry.
Benefits: Resists clogging; simple design for easy cleaning.
